Type 45 - Crossover
Description

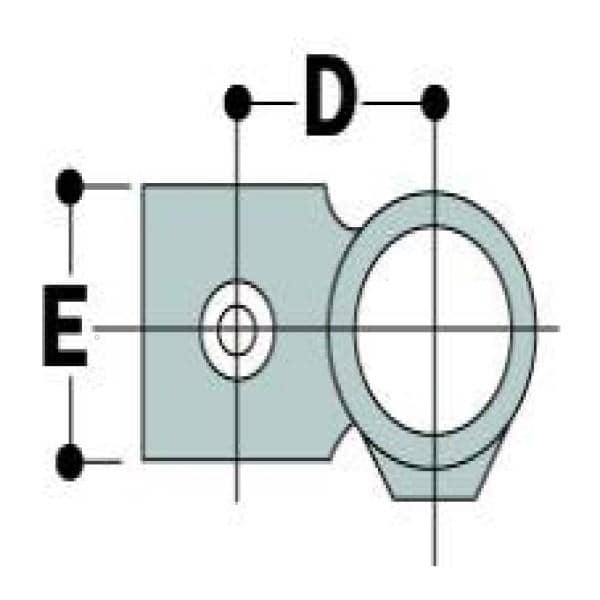

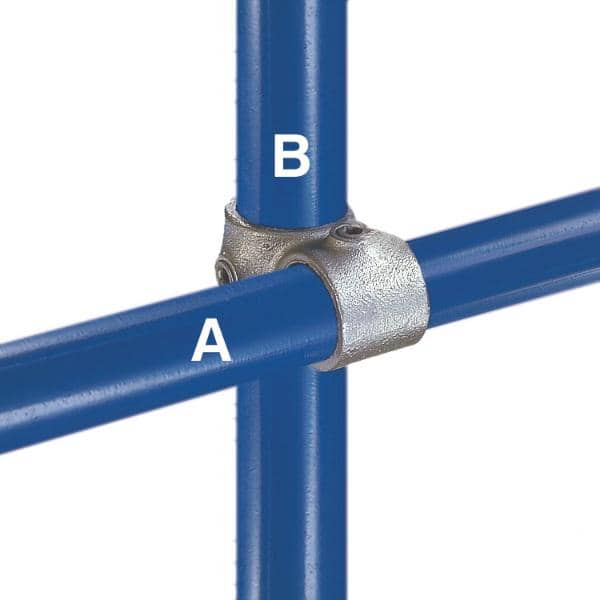

Designed to give a 90° offset crossover joint. Frequently used on guardrail, where, to reduce cost by minimizing the pipe cuts, a continuous horizontal rail is used. Pipe cannot be joined within this Kee Klamp® fitting. It may be also used to give intermediate levels on racks, etc, when horizontal ties between uprights across the section are not required. Note: Where dimension 'E' indicates two figures the 1st figure refers to socket 'A', the second refers to socket 'B' in the table.
Share:
Copied!
| Pipe OD | Meas. (in.) | ||||
| Type | A | B | D | E | lbs. |
| 45-6 | 1.32" | 1.32" | 1.57 | 1.50 | 0.76 |
| 45-65 | 1.32" | 1.32" | 1.42 | 1.61/1.46 | 0.64 |
| 45-7 | 1.66" | 1.66" | 2.13 | 1.81 | 1.18 |
| 45-76 | 1.66" | 1.66" | 1.77 | 1.81/1.50 | 0.99 |
| 45-8 | 1.90" | 1.90" | 2.17 | 2.01 | 1.30 |
| 45-86 | 1.90" | 1.90" | 1.89 | 2.0/1.5 | 1.00 |
| 45-87 | 1.90" | 1.90" | 2.01 | 2.0/1.81 | 1.20 |
| 45-9 | 2.38" | 2.38" | 2.64 | 2.40 | 2.00 |
| 45-98 | 2.38" | 2.38" | 2.36 | 2.95/2.87 | 2.40 |
