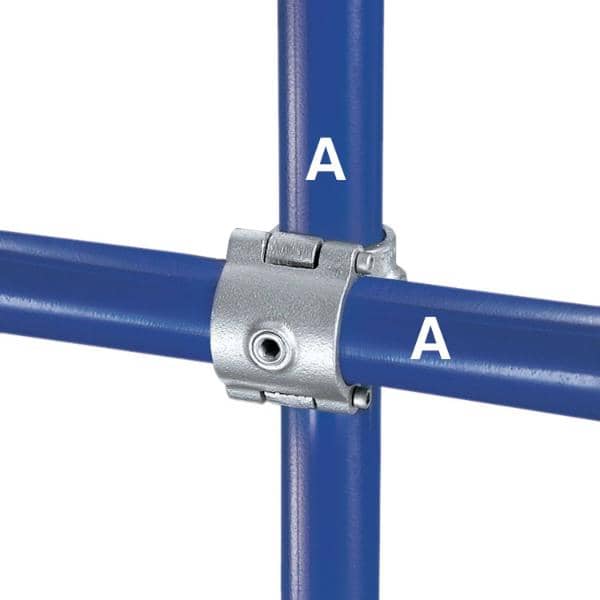

Designed to give a 90° offset crossover joint, tube should not be joined within the fitting. Can be added to an existing structure without the need to dismantle the structure to attach the fitting.
Nominal Pipe Size
inches
lbs
Type
A
B
C
D
E
F
G
H
A45-7
1 1/4"
1.93
1.43
A45-8
1 1/2"
2.17
1.74
