Skylight Fall Protection

Ensure commercial rooftop safety and complete OSHA compliance with premium Skylight Fall Protection systems from Safety Rail Source®. Engineered and manufactured in the USA, our non-penetrating guardrails and heavy-duty skylight screens safeguard maintenance crews from severe fall hazards without damaging TPO, EPDM, or built-up roof membranes.

For over 25 years, Safety Rail Source® has partnered with leading manufacturers like Tie Down Engineering® and Kee® Safety to deliver factory-direct, cost-effective safety solutions for all commercial roof types including standing seam, corrugated, and custom roof openings.

Product Videos

OSHA Testing - NextGen 3000 vs. the Competition

Kee Dome® Skylight Railing

OSHA Skylight Safeguard Requirements

Under OSHA 1910.28(b)(3)(i), employers must protect workers from falling through any roof opening, including skylights, smoke vents, and hatch openings. OSHA requires that skylight hazards be guarded by a protective screen, cover, or perimeter guardrail system capable of supporting at least twice the maximum intended load or withstanding a 200 lb. force. Installing certified skylight protection eliminates hazardous roof gaps, ensures regulatory compliance, and prevents severe workplace injuries.

Protect your workforce, lower facility liability, and simplify OSHA compliance. Contact Safety Rail Source® today for expert project consultations or custom sizing requirements. Read more about Unprotected Skylights on our OSHA article.

Skylight Protection Systems Comparison

Product CollectionPrimary FunctionSystem TypeSuitable Roof FeaturesInstallation DesignModels / Variants

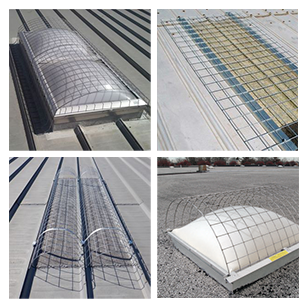

NextGen Skylight Safety-Screens™ Direct skylight cover Mesh screens Domed skylights, standing seam, corrugated roofs Non-penetrating direct fit Standard & custom fits (Model SSS, STS, SRS, SCS)

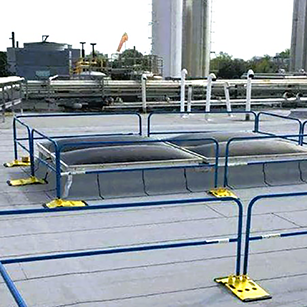

Skylight Railing Barrier around skylights & openings Modular panels & continuous rails Unusually shaped or large skylights Non-penetrating bases NextGen 3000™, Kee Guard®, Kee Dome®

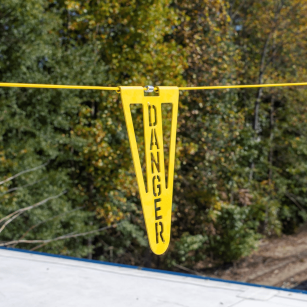

NextGen Warning Lines™ Visual perimeter hazard boundary Portable line with metal flags General rooftop edges & skylight zones Freestanding with 50 lb. base plates Standard 100 ft. kits with 6 bases

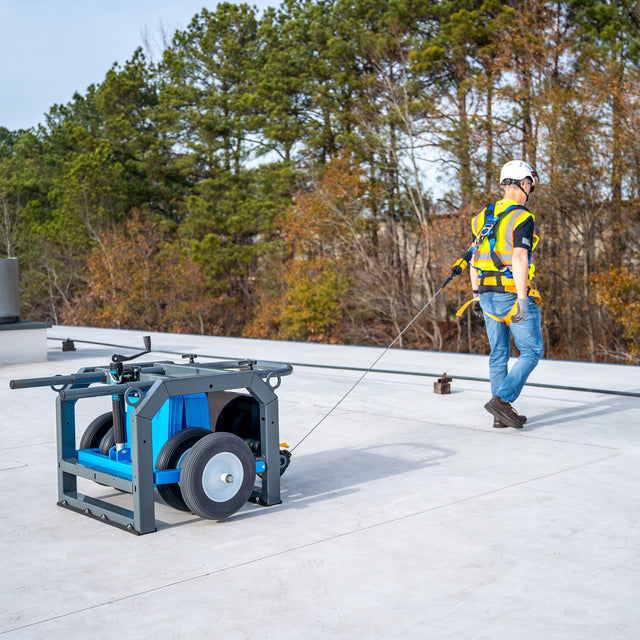

Mobile Fall Protection Portable multi-user tie-off anchor Non-penetrating weights & piercing spikes Concrete, TPO, EPDM, built-up roofs Portable rolling carts & weighted anchor bases BigFoot™, Squatch™, PX3™, PX5™ Sentinel

Frequently Asked Questions

Will installing skylight fall protection damage my commercial roof?

No. Our Skylight Fall Protection systems feature non-penetrating designs. This means our guardrail bases and screen mounts sit securely on the roof surface without piercing it, preserving the integrity of your TPO, EPDM, or built-up roof membranes and protecting your manufacturer warranties.

Should I choose a skylight screen or a skylight railing?

The right choice depends on your specific roof opening. NextGen Skylight Safety-Screens™ provide a direct, heavy-duty mesh cover that is perfect for standard domed skylights or those installed on standing seam or corrugated rooftops. If you have unusually shaped skylights, very large roof openings, or prefer a perimeter barrier, modular Skylight Railing systems like the Kee Dome® or NextGen 3000™ are the recommended solution.

What specific dimensional and strength standards must skylight guardrails meet for OSHA compliance?

According to OSHA criteria detailed in our Unprotected Skylights guide, guardrails surrounding roof openings must meet the following structural requirements:

  • • Top Rail Height: Top rails must measure 39 to 45 inches above the working surface.
  • • Load Capacity: Top rails must withstand 200 lbs. of force in downward or outward directions.
    • Midrail Barrier: Midrails or mesh barriers must be positioned midway between the top rail and the roof.
  • • Hazard Proximity: Guardrails must sit close enough to openings to prevent hazardous step-through gaps.

What are the most common reasons commercial skylights fail OSHA inspections even when protection is installed?

Facilities frequently incur OSHA violations due to subtle installation and maintenance errors:

  • • Undersized Covers: Unrated covers risk collapse by failing to support twice the maximum intended load.
  • • Unsecured Fasteners: Wind, movement, or foot traffic easily shifts loose screens out of place.
  • • Improper Placement: Guardrails positioned too far from perimeters leave dangerous open gaps.
  • • Missing Markings: Openings lack essential high-visibility warning labels.
  • • Post-Work Maintenance: Screens are frequently left uninstalled after rooftop maintenance finishes.
