Rooftop Railing

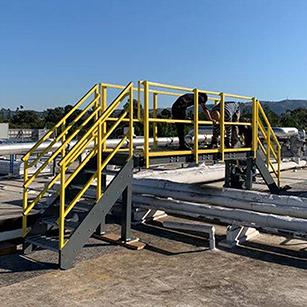

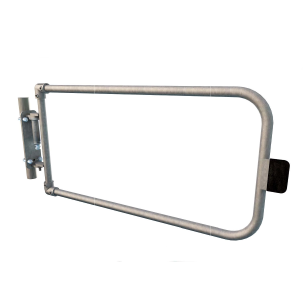

Safety Rail Source® offers a comprehensive collection of USA-manufactured, OSHA-compliant rooftop railing systems and fall protection solutions. Our line features freestanding, non-penetrating options - including NextGen 3000™ with 58-lb bases and Kee Guard® with PVC counterweights - and permanently attached systems like NextGen Continuous and NextGen Custom Railing™ for parapets and structural surfaces. To ensure complete perimeter compliance, our guardrails integrate seamlessly with self-closing Safety Gates, industrial Crossover Stairs, Platforms, and Ramps to navigate complex rooftop obstacles.

Product Videos

NextGen 3000™ Universal Guardrail

KeeGuard Railing®

NextGen Tensioned WebRail™ Demo

Technical & Environmental Specs

Architectural & Engineering Specifications

  • Railing Materials: Galvanized steel, scheduled 40 aluminum pipe, and non-corrosive powder-coated finishes.
  • Load Requirements: Fully engineered to meet and exceed the OSHA 200-lb. concentrated load structural requirement (OSHA 29 CFR 1910.29).
  • Base Weight Specifications: Non-penetrating 58-lb. recycled rubber/cast iron bases designed with an aerodynamic footprint to prevent wind-uplift without roof anchoring.
  • Pipe Diameters: Standard 1-1/2" ID (1.90" OD) pipe options utilizing modular Kee Klamp® structural fittings.

Roof-Type Compatibility Index

  • Single-Ply Membranes: TPO, EPDM, PVC, and Modified Bitumen roofs (Ideal for non-penetrating NextGen 3000™ or Kee Guard®).
  • Metal Roof Configurations: Standing seam roofs, R-panels, and corrugated metal decks (Compatible with our specialized non-penetrating clamps and permanent single-post baselines).
  • Concrete & Structural Decks: Multi-level industrial surfaces, balconies, and parapet walls (Optimized for NextGen Custom Railing™ anchors).

Application Environments & Industry Verticals

  • Commercial Infrastructure: Data centers, distribution fulfillment hubs, and manufacturing facilities requiring continuous edge hazard remediation.
  • Institutional Frameworks: Educational campuses, healthcare networks, and municipal buildings looking for aesthetically streamlined, ADA-compliant perimeter protection.

Whether you need temporary edge boundaries or permanent commercial perimeter guards, Safety Rail Source® delivers industry-leading engineered fall protection designed to exceed OSHA standards. See our Articles and Case Studies to learn more about Rooftop Safety.

We partner with top safety manufacturers - including Tie Down Engineering®, Kee Safety®, Belmont Safety®, FallProtec® and ErectaStep®  to deliver high-performance equipment at competitive prices.

Rooftop Railing Comparison

Fall Protection SystemSystem TypeMounting DesignPrimary MaterialKey FeaturesIdeal Application

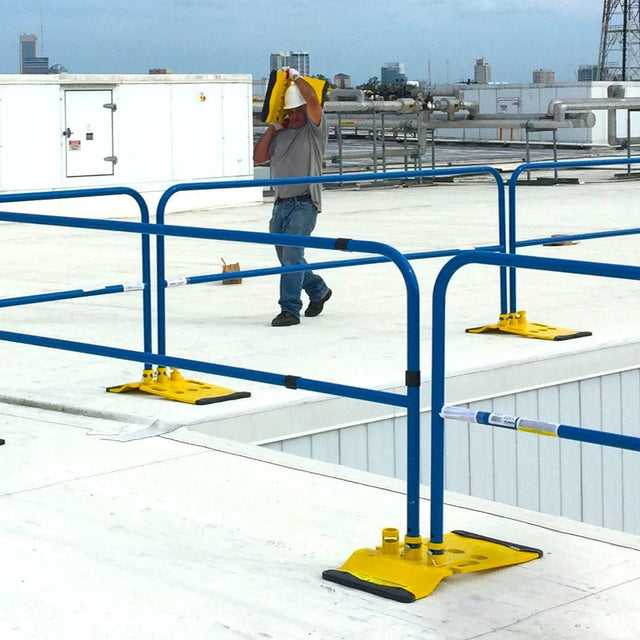

NextGen 3000™ Universal Guardrail System Freestanding / Non-penetrating Lightweight 58 lb. bases with protective rubber pads High-strength steel powder-coated or galvanized Fast, modular assembly without roof membrane penetration; online purchasing available. Commercial roof edges, skylight perimeter protection, and temporary or permanent boundary guard.

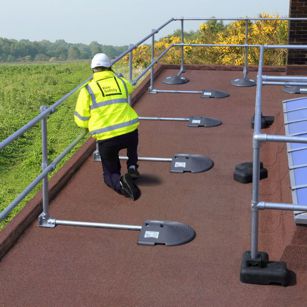

Kee Guard® Railing Freestanding / Non-penetrating Ballasted PVC counterweight bases Galvanized steel pipe with Kee Klamp® fittings Modular component system requiring no welding or threading; high corrosion resistance. Complex roof configurations, harsh outdoor environments, and long perimeter runs.

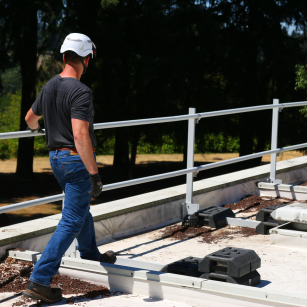

NextGen Mighty-Lite™ Aluminum Freestanding / Lightweight Ballasted or fixed options High-grade structural aluminum Ultra-lightweight profile to minimize overall dead load on the roof membrane. Weight-sensitive roofs or installations requiring easy manual transport and setup.

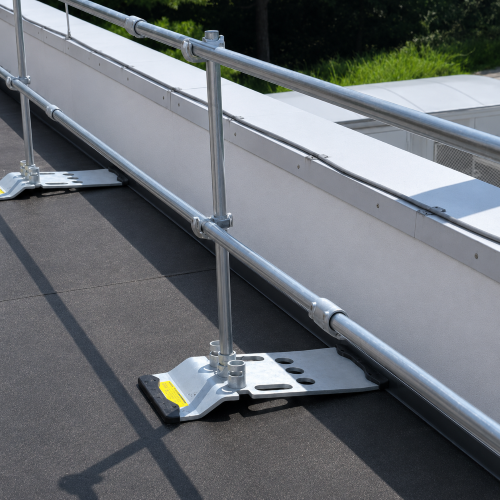

NextGen Continuous Railing™ Continuous Top and Mid Rail Single post per base plate footprint Steel bases with steel or structural aluminum pipe Features a single continuous top and mid rail for an unbroken visual line across roof edges. Projects where clean architectural aesthetics and smooth, continuous rail sightlines are preferred.

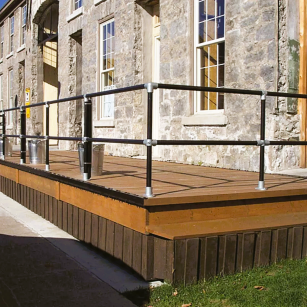

NextGen Custom Railing™ Permanently Attached Fixed mount (attached to parapet walls, roof decks, or structural steel) Custom-engineered steel or aluminum Tailored to exact building geometry, parapet height variations, and structural constraints. High-wind locations, non-standard roof profiles, and sites requiring permanent mechanical anchoring.

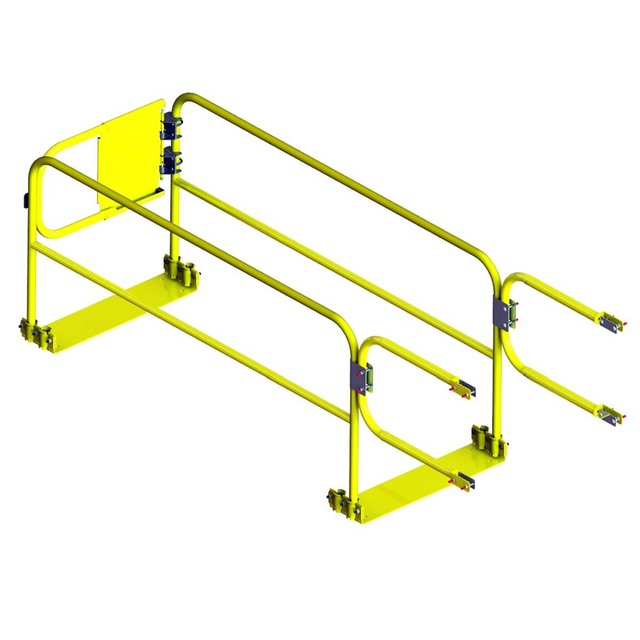

NextGen Ladder Corral™ Ladder Access Fall Protection Fixed / Clamped to roof hatch or exterior ladder opening Heavy-duty steel or aluminum with self-closing gate options Encloses ladder landing points to prevent fall-through risks while workers step onto or off the roof ladder. Fixed rooftop access ladders, exterior wall ladders, and roof hatch access points.

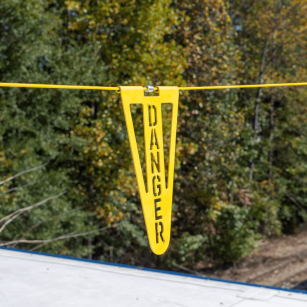

NextGen Warning Lines™ Visual Boundary / Perimeter Alert Heavy-duty stanchions with weighted bases Steel stanchions with high-visibility flags/pennants Establishes a visual safety boundary; quick set-up and relocation without drilling into roof membranes. Designated roof work zones set back from roof edges, low-slope roofs, and construction boundaries.

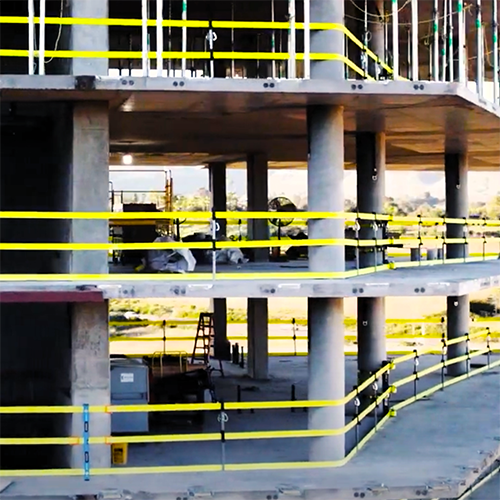

NextGen Tensioned WebRail™ Horizontal Lifeline / Tensioned Barrier Stanchion mounts with high-tension webbed strap/cable Industrial-grade webbed strapping / high-strength composite line Provides a high-visibility, continuous tensioned horizontal barrier with fast setup and minimal components. Mid- and high-rise construction, long perimeter spans, temporary roof edge protection, and large flat roof maintenance zones.

Frequently Asked Questions

Are freestanding rooftop railings compliant with OSHA standards?

Yes. OSHA standard 29 CFR 1910.29 requires top rails to withstand 200 lbs. of downward or outward force. Systems like the NextGen 3000™ Universal Guardrail and Kee Guard Railing are engineered and third-party tested to meet or exceed all OSHA fall protection requirements without requiring structural roof attachment.

Will non-penetrating guardrails void or damage my roof membrane warranty?

No. Non-penetrating guardrail systems use heavy rubber or PVC-counterweighted bases that sit directly on top of the roof surface. They require zero drilling, penetration, or mechanical fasteners, keeping your existing roof membrane intact and preserving manufacturer warranties.

Can guardrails be customized for unique or irregular roof shapes?

Yes. The modular design of our guardrail lines allows for easy navigation around pipes, HVAC equipment, and roof level changes. For complex site geometries or parapet-mounted needs, we offer NextGen Custom Railing™ systems tailored directly to your building's exact layout.
