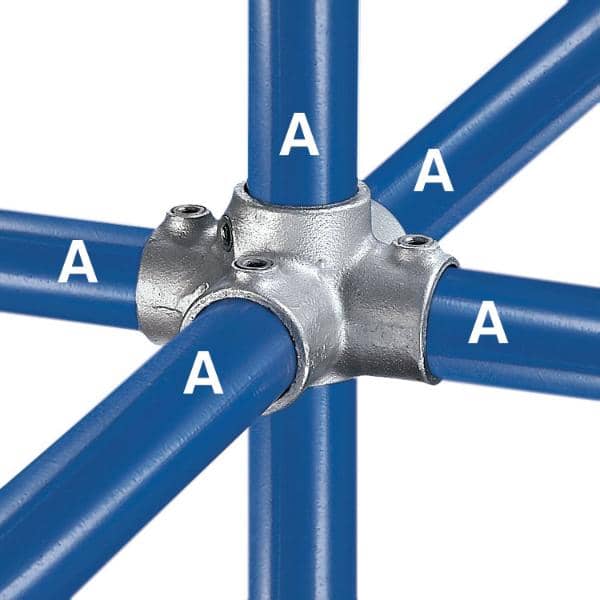

Type 40 - Four Socket Cross
Description
Most frequently used in multiple upright structures, to tie a center upright with horizontal pipe in four directions. The upright passes through the fitting.
Share:
Copied!

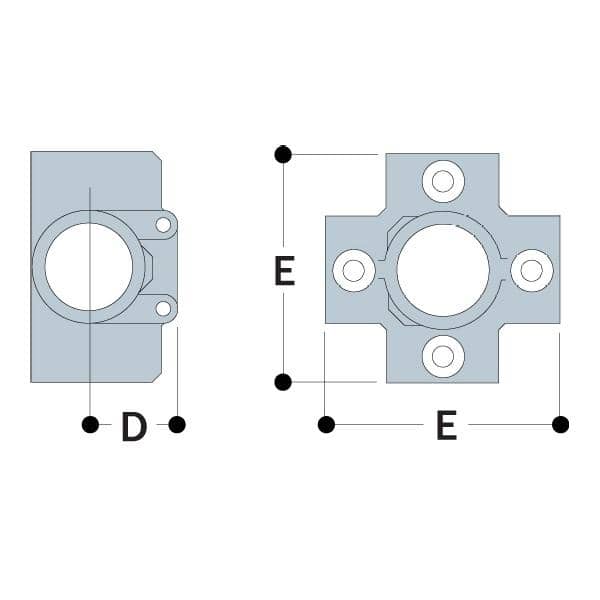

| Pipe OD | Meas. (in.) | |||
| Type | A | D | E | lbs. |
| 40-6 | 1.32" | 1.46 | 3.62 | 1.32 |
| 40-7 | 1.66" | 1.69 | 4.72 | 2.32 |
| 40-8 | 1.90" | 2.09 | 5.35 | 3.22 |
| 40-9 | 2.38" | 2.44 | 6.61 | 5.07 |
