NextGen 3000™ Universal Guardrail System

The NextGen 3000™ Universal Guardrail System is an OSHA-compliant, freestanding safety railing designed to provide permanent or temporary fall protection on virtually any commercial or industrial roof. Its non-penetrating, weighted bases grip the roof under load, preserving roofing warranties while delivering exceptional strength and stability. From HVAC equipment to roof perimeters, this modular system provides a flexible, easy-to-install solution to create safer work environments. See below for complete system details, key benefits, and technical specs.

Product Videos

Universal Rails

Passive Fall Protection

Guardrail recommended by STC

Why Choose NextGen 3000™?

Thousands of commercial buildings require routine rooftop access for maintenance, inspections, HVAC service, telecommunications equipment, and solar systems. Every rooftop presents unique hazards, making adaptable fall protection essential. The NextGen 3000™ system was engineered to solve the challenges that traditional rooftop guardrail systems often create.

Key Benefits:

  • Non-penetrating design helps protect roof warranties
  • OSHA-compliant passive fall protection
  • Lightweight 58 lb. bases
  • Fast installation with no welding or roof penetrations
  • Permanent or temporary installation
  • Modular system easily expands or reconfigures
  • Works around rooftop obstacles
  • Made in the U.S.A.

Designed for OSHA Compliance
Protecting workers begins with meeting OSHA fall protection requirements. The NextGen 3000™ Universal Guardrail System is engineered to help employers comply with OSHA 1910.28(b)(13), which requires fall protection when employees perform work within 15 feet of an unprotected roof edge. Because guardrails provide passive fall protection, workers remain protected without needing to connect to personal fall arrest equipment for many routine rooftop activities. This reduces setup time while helping improve jobsite safety.

How the System Works
Each railing section fits securely into specially engineered 58-pound steel bases equipped with durable neoprene rubber feet. Rather than relying solely on weight, the system is designed so that forces applied to the top rail drive the bases downward, increasing friction against the roof surface. This allows the guardrail system to resist applied loads while remaining completely freestanding - eliminating the need to drill through the roof membrane.

The result is:

  • No roof penetrations
  • No flashing of railing posts
  • No leak concerns created by installation
  • No compromise to the roof’s integrity thereby preserving the warranty
  • Reliable OSHA-compliant edge protection

Built for Virtually Any Rooftop
Commercial rooftops rarely consist of open, uninterrupted perimeters. The modular design allows installers to configure the system around:

  • HVAC units & Mechanical equipment
  • Skylights & Solar panel arrays
  • Pipe supports, conduits, and ductwork
  • Roof hatch openings
  • Elevation changes & Access walkways

Adjustment tubes simplify odd-length sections while optional continuous railing creates a clean architectural appearance on highly visible buildings.

Technical Resources

  • Guardrail Flier — Complete product overview and system capabilities.
  • Product Videos — Visual demonstrations of the system in action on the jobsite.

Ready to Protect Your Rooftop?
Contact Safety Rail Source for expert design assistance. Our team can help you select the ideal rooftop guardrail configuration for your facility while simplifying OSHA compliance and protecting your investment.

The NextGen 3000™ Product Line

ProductApplication

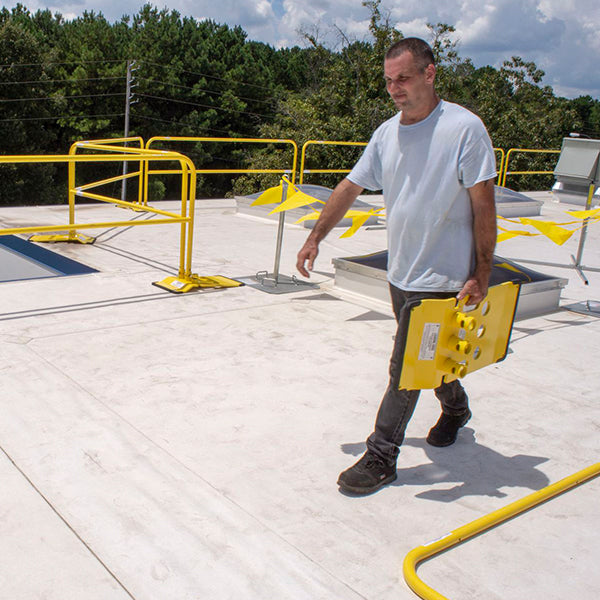

NextGen 3000™ Universal Guardrail Modular perimeter guardrail (includes rails, bases, and optional toe boards).

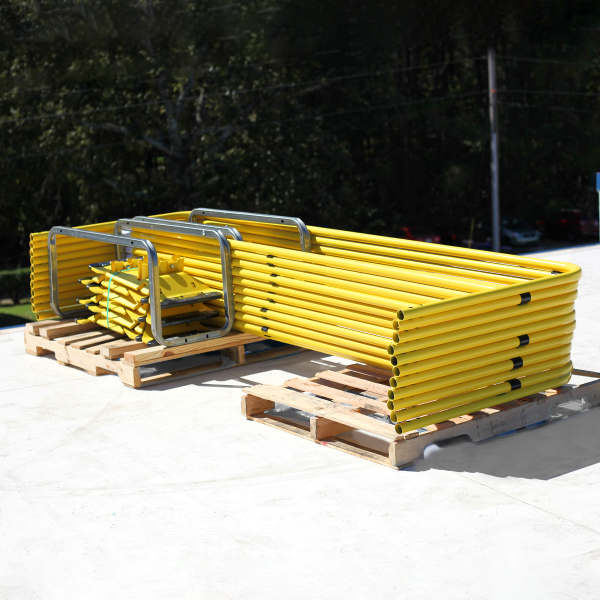

NextGen 3000™ Universal Stack Pallet Bulk storage and transport for 11 rails and 12 standard bases.

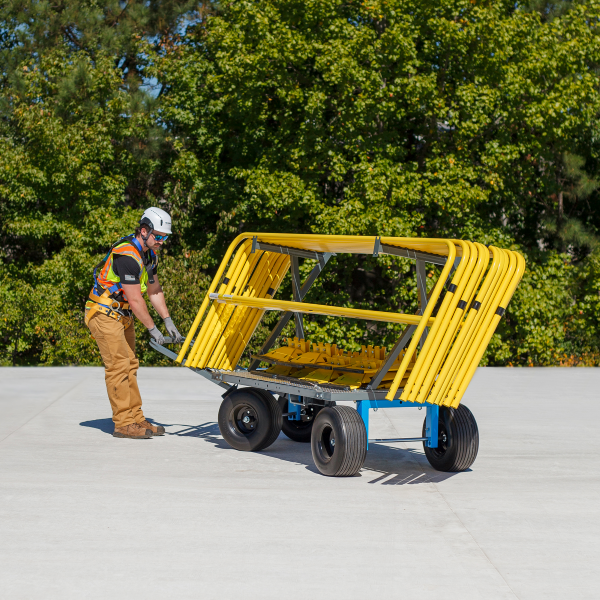

Portable Kart-a-Rail™ Wheeled cart for transporting rails and bases across rooftops and facilities.

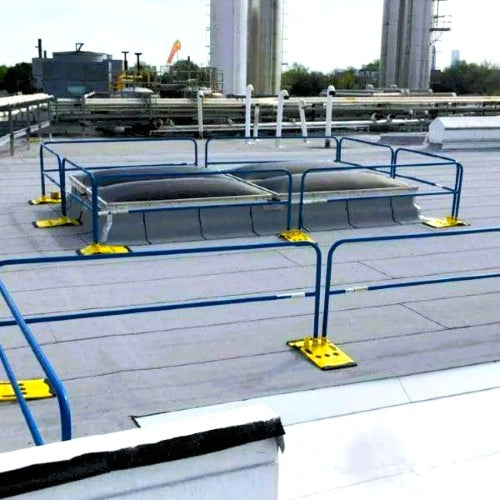

NextGen 3000™ Universal Skylight Guardrail Modular guardrail designed to protect large or irregular skylight openings.
Kee® Self-Closing Safety Gate Automatic self-closing gate for ladder-ways, hatches, and stairway openings.

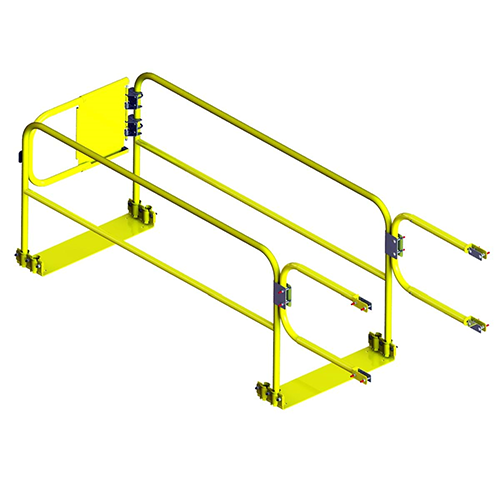

NextGen Ladder Guardrail Corral™ Creates protected transition zones at fixed ladder and stair access points.

Frequently Asked Questions

How does the NextGen 3000 Guardrail stay secure without penetrating the roof surface?

It utilizes 58 lb counterweighted bases with neoprene rubber feet. Applied forces drive the bases to grip the surface tightly, providing OSHA-compliant protection without voiding roof warranties.

What panel sizes are available, and how do you accommodate custom lengths or obstacles?

Railings come in 5, 7.5, and 10 ft sections. An adjustable tube system bridges non-standard distances, elevation changes, and roof obstacles like piping.

Can the guardrails be customized to match building aesthetics?

Yes, standard panels come in Safety Yellow, but 15 optional custom colors are available. Buyers can also choose a modular panel or a sleeker continuous railing design.

Which OSHA safety standards does this guardrail system satisfy?

It meets OSHA Code 1910.28(b)(13), which mandates fall protection for employees working less than 15 feet from an unprotected roof edge.

Is installation difficult?

No. Installation is fast and requires minimal labor. Pre-assembled railing panels (5ft, 7.5ft, and 10ft lengths) simply slide into base sockets with grab handles and lock with hitch pins, allowing local crews to secure roof hazards quickly. Most installations require only basic tools and no specialized training. For organizations that prefer turnkey installation, Safety Rail Source provides nationwide installation assistance and design support.
