NextGen Continuous Railing™ - Standing Seam
Description

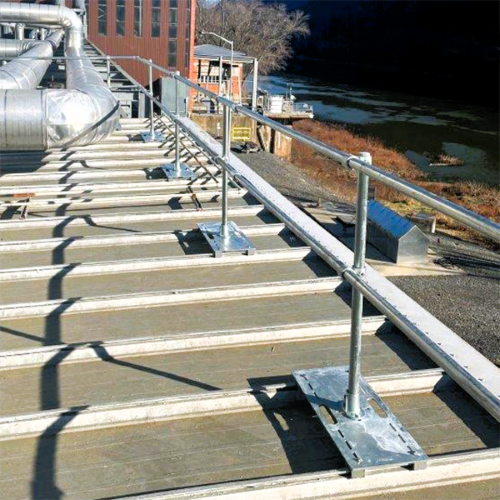

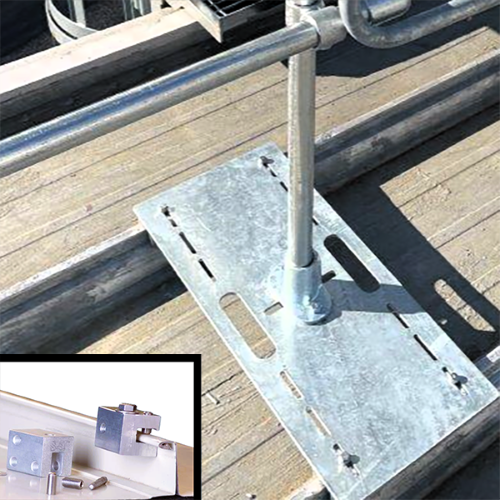

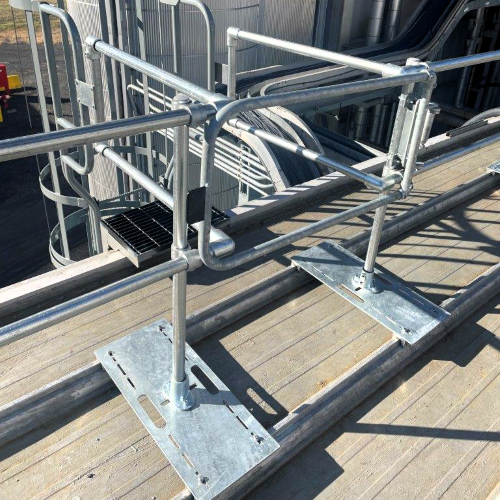

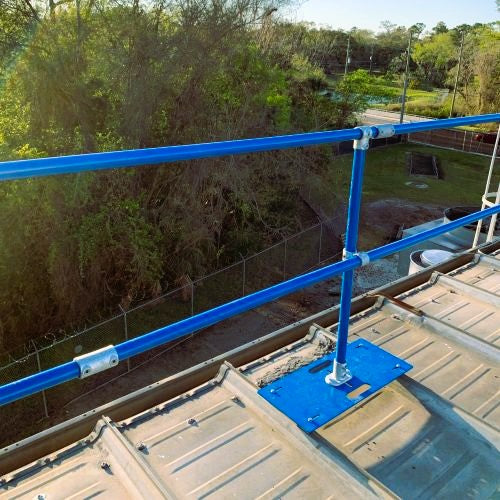

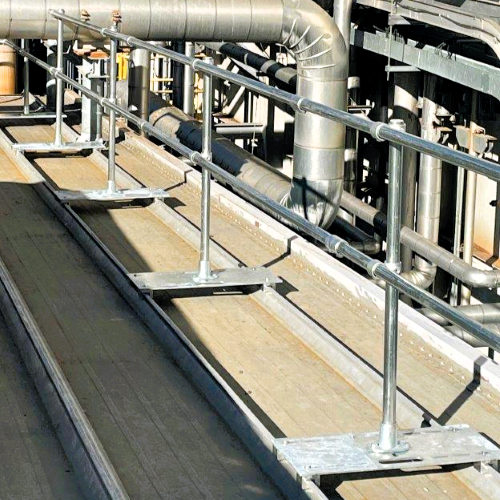

Continuous Railing for standing seam roofs uses a special mounting plate as its base. A Type 62 flange fitting is mounted in the center of the plate to receive the railing post. The plate and fitting are then mounted to the standing seam using S-5 clamps. The railing system is completed by adding top and mid rails into the drop-in fittings. The top and mid rails are connected in series with a Type 14 coupling. The design can call for either 1.66 OD or 1.9 OD pipe. Guardrail will arrive as 10' lengths of pipe to be connected via fittings provided. Some field cutting may be necessary during installation.

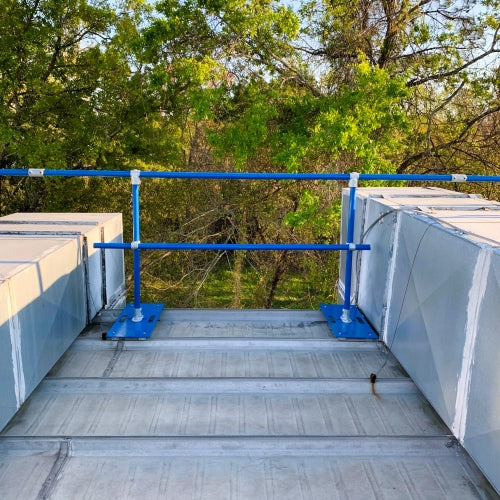

The standard finish for rails and bases is galvanized with powder coating available in Custom Colors.

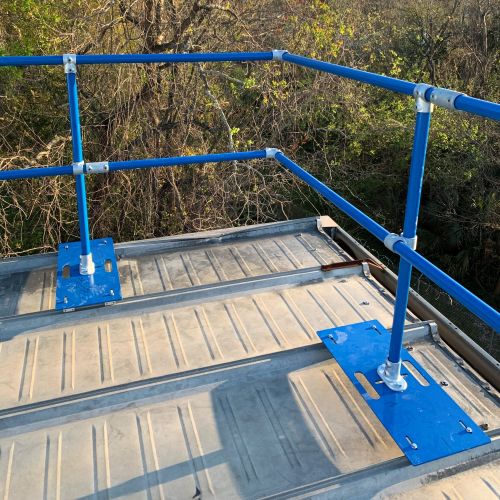

Note: Minimum 5 ft. returns are required at terminations to satisfy OSHA standards.
Contact Us for design assistance.
Features:
OSHA-compliant engineered design
Lightweight bases with grab handles
Bases attach to standing seam using S-5 clamps
High quality / Low cost
Simple installation
Technical Specifications:
Tested to exceed OSHA standards
15 lbs. bases
Continuous top rails, mid rails and fittings
Custom colors available
Installation:
Tie-off according to OSHA standards
Assemble railing posts, fittings and bases
Attach railing base and post assembly to standing seam
Connect railings with Type 14 couplings
Install 5 ft. returns at terminations
Tighten all set screws and nuts
