NextGen Custom Railing™ - Wall Mounted
Description

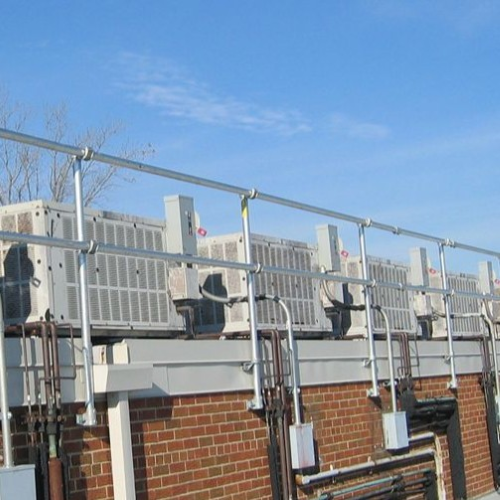

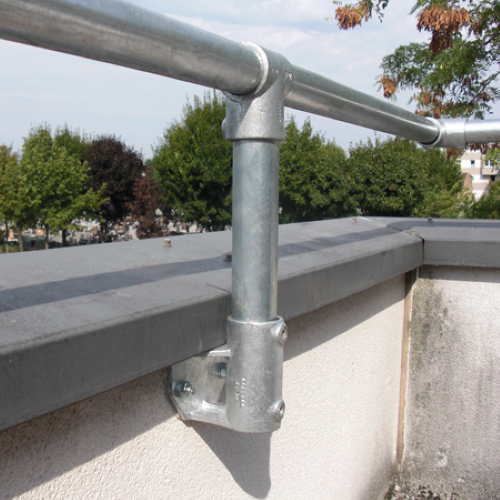

Wall Mounted Railing posts are mounted to a parapet wall or a side wall by using wall flanges. Once the posts are securely mounted, the railing is completed by adding top and mid rails into the drop-in fittings. The top and mid rails are connected in series using Type 14 couplings. The design can call for either 1.66 OD or 1.9 OD pipe. Railings are OSHA compliant.
The standard finish for rails and bases is galvanized with powder coating available in Custom Colors.
Note: Minimum 5 ft. returns are required at terminations to satisfy OSHA standards.
Contact Us for design assistance.
Features:
OSHA-compliant engineered design
Wall mount type bases
High quality / Low cost
Simple installation
Technical Specifications:
Tested to exceed OSHA Standards
Type 68, 65, 115 or 265 base fittings
Continuous top rails, mid rails and fittings
Custom colors available
Installation:
Tie-off according to OSHA standards
Assemble railing posts with drop in fittings and cap
Fasten base fittings to wall
Insert posts into base fittings
Install top and mid rails into drop fittings
Connect railings with type 14 couplings
Tighten all set screws and nuts
