Product Price : $4,822.00 Product Tax : $5,159.54

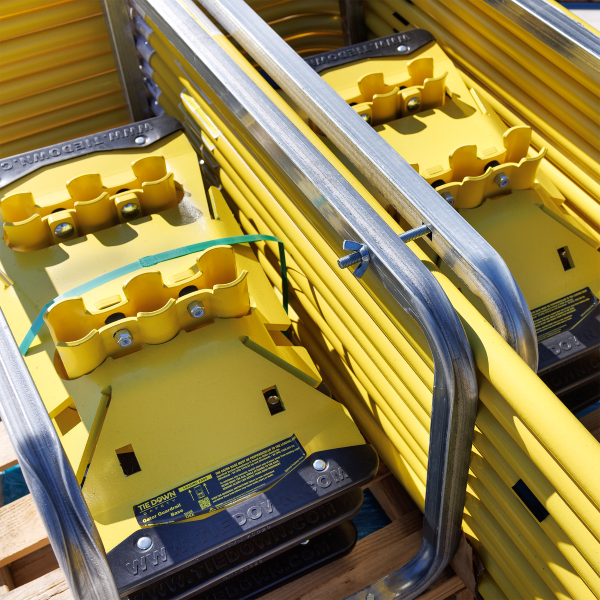

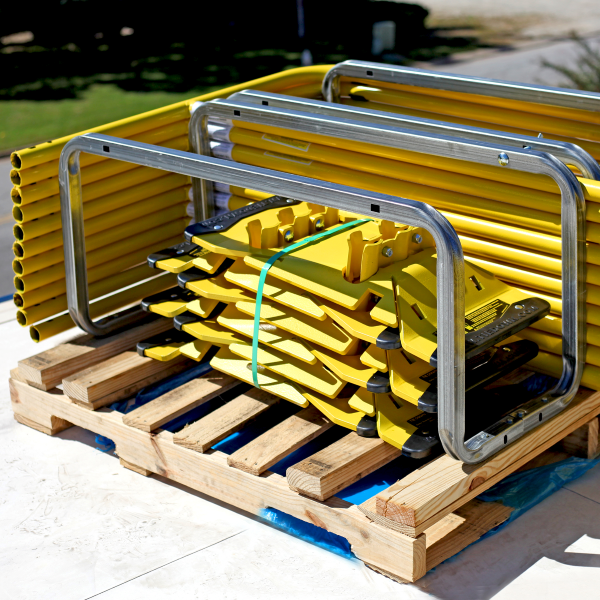

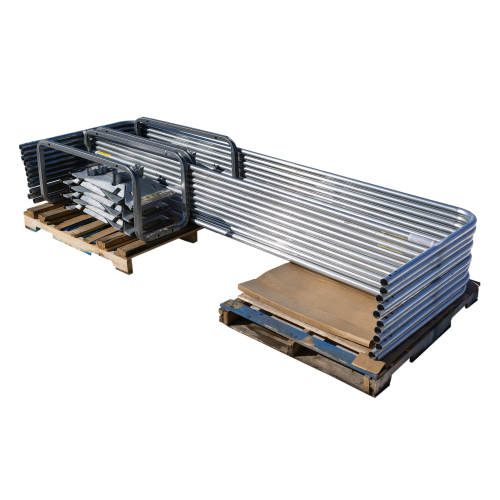

The NextGen 3000™ Universal Stack Pallet includes 11, 10 ft. Rails and 12 Standard Bases. Each stack pallet weighs 1,142 lbs. The guardrail system is free-standing and non-penetrating and won't damage the roof membrane. Stack Pallets are available in galvanized finish or durable powder coating - yellow finish is standard with Custom Colors available. Toe Boards are also available.
See our NextGen 3000™ Universal Guardrail page to purchase railing or bases separately.
Note: Minimum 5 ft. returns are required at terminations to satisfy OSHA standards.
Contact Us for design assistance.
Features: OSHA compliant engineered design Lightweight, stackable bases with grab handles Bases designed with neoprene rubber feet High quality / Low cost Simple installation
Technical Specifications: Tested to exceed OSHA Standards 58 lb steel bases Pre-assembled 1.66 OD panels (5ft, 7.5ft, 10ft) Powder coating - yellow finish standard(other colors available) or galvanized finish available
Installation: Tie-off according to OSHA Standards Remove stones from roof at base location Place bases 18 in. from the roof edge Insert railing panels into base sockets Secure railing to base using hitch pin
