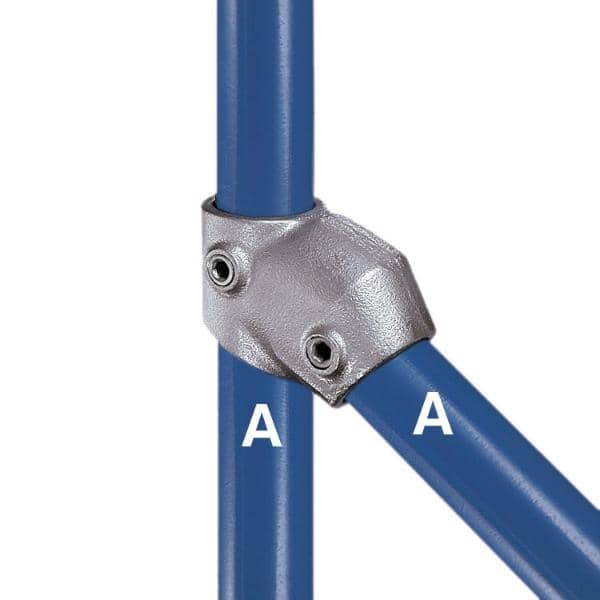

Designed as an alternative to the Type 12 fitting, this adjustable Kee Klamp® fitting is most frequently used for struts and braces. It may be used at any selected angle between 30° and 60°. As an alternative, it is possible to use Type 29 in its vertical position in place of the Type 27, using the Type 27 only where a join in the pipe occurs.
Nominal Pipe Size
inches
lbs
Type
A
B
C
D
E
F
G
H
29-6
1"
2.87
2.52
0.97
29-7
1 1/4"
3.50
2.91
1.39
29-8
1 1/2"
4.02
2.68
2.14
