Every year, hundreds of workers die from falls in the construction industry alone. Some of these accidents are due to inadequate guardrails and handrails — essential elements of fall prevention.

Although the Occupational Safety and Health Administration (OSHA) provides clear railing requirements, many companies fail to implement them correctly. Misinterpreting OSHA rules can lead to serious injuries; it can also increase the risk of fines and compliance issues.

While rail violations are common, they're also preventable. In this article, we'll explore OSHA's railing standards, explain where they apply and provide practical tips for compliance.

Understanding OSHA’s Railing Requirements

Under OSHA's requirements, guardrails and handrails must meet specific dimensions and performance standards in both general industry and construction. The top rail and midrails must be at least .25 inches thick. They may not overhang the end posts. The top edge should rise 42 inches above the walking surface, plus or minus 3 inches.

If a guardrail system doesn't have a wall that's 21 inches or taller, it needs one of the following:

•         Midrails installed halfway between the walking surface and the top edge of the rail

•         Screen or mesh that covers the entire opening between the top rail and the walking surface

•         Vertical supports or other intermediate members spaced 19 inches or less apart

The top rail must be also able to withstand 200 pounds of downward or outward force. Under downward force, the top rail should remain at least 39 inches above the walking surface. The midrails, vertical members, screen, mesh, or other members must withstand 150 pounds of outward force.

On the bottom of a guardrail system, employers must provide toeboards that are at least 3.5 inches tall. These boards must withstand at least 50 pounds of downward or outward force.

OSHA sets out a few additional requirements for the construction industry. For example, if a guardrail has a wire-rope top rail, it must be marked with high-visibility material. Flags should be placed no more than 6 feet apart. Construction sites may also need to use fall protection such as safety nets or individual fall-arrest systems.

Where Railing Requirements Apply

In general industry, OSHA requires employers to install fall-protection systems in areas with vertical drops of 4 feet or more. Construction-industry employers need approved fall protection in areas with drops of 6 feet or more. This might include unprotected walkways, rooftops, elevated work platforms, loading docks, ladder access points and mezzanines.

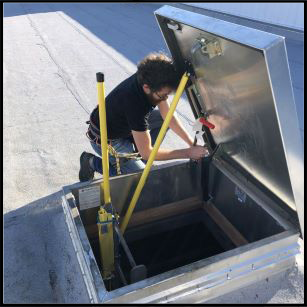

OSHA compliance is particularly important if employees work less than 15 feet from the edge of a roof. Railing requirements may also apply if employees work near roof hatches or skylights, though OSHA permits the use of alternative protections such as screens or warning lines in certain scenarios.

Occasionally, OSHA's fall-protection rules apply regardless of height. For example, employees must install guardrails to prevent workers from falling onto dangerous machines and equipment.

The best way to determine where OSHA's railing requirements apply is to conduct a hazard assessment. The process involves a review of past records, a detailed facility inspection and careful analysis of safety incidents. It can be done in-house or outsourced to a safety consultant.

Common Compliance Issues and How to Avoid Them

Here are some of the most common compliance issues with OSHA railing requirements:

•             Incorrect height. If the top rail of a guardrail isn't within 39-45 inches above the walking or working surface, it could violate OSHA rules.

•             Lack of toeboards. These boards prevent items from falling onto employees at lower levels. The bottom edge cannot be more than 0.25 inches off the walking surface, and boards may not have openings larger than 1 inch.

•             Missing or incorrectly spaced midrails. Midrails or panels help prevent falls. If they're missing or spaced more than 19 inches apart, the guardrail is not OSHA-compliant.

•             Non-compliant materials. Materials must meet OSHA's thickness requirements. Steel or plastic banding may not be used on midrails and top rails.

•             Lack of force resistance. Guardrails must be designed and anchored to meet OSHA's force requirements. If the top rail or midrails fail when the required amount of force is applied, they violate OSHA rules.

The easiest way for businesses to install compliant guardrails is to use pre-tested railing systems from Safety Rail Source. These products streamline compliance, eliminate guesswork and reduce the risk of violations.

Railing Requirements for Stairways and Ladder Access Areas

OSHA requirements for stairs and ladder-access areas are often overlooked, leading to preventable citations. Safety Rail Source offers both handrail and ladder safety products that are engineered to meet OSHA specifications.

If a guardrail covers an access point such as a ladder, it must have a swinging gate. Alternatively, the opening can be offset to prevent employees from falling.

Stairs must be equipped with rails if they're 30 inches tall or have at least 4 risers and 3 treads. Each unprotected side should have a handrail. The top rail must be 30-37 inches from the tread, depending on the year it was installed.

As with guardrails, stair rail systems must have a midrail halfway between the top edge and the stair tread. Alternatively, they may use full-coverage mesh or screen or vertical members spaced no more than 19 inches apart. Rail systems must withstand 200 pounds of downward or outward force without failing.

OSHA-Compliant Railing Solutions from Safety Rail Source

Safety Rail Source offers a wide range of OSHA-compliant railing systems designed to protect workers and simplify compliance. All systems are available in galvanized, aluminum or powder-coated finishes to suit different environments and aesthetic needs.

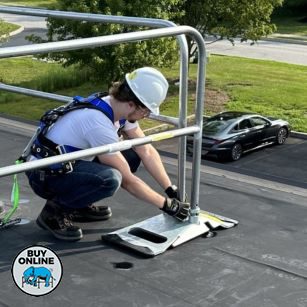

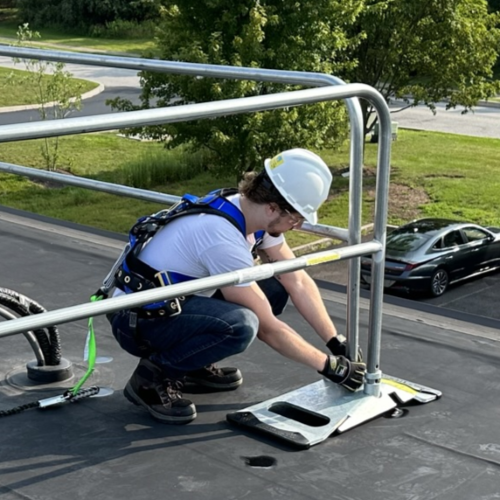

For rooftop or elevated applications that require non-penetrating solutions, we offer two proven options:

●      KeeGuard^®: A continuous, fixed system ideal for long, uninterrupted spans

●      NextGen 3000™: A modular system designed for flexibility and easy reconfiguration

●      NextGen Mighty-Lite Aluminum Railing™: Lightweight, corrosion-resistant and versatile for indoor and outdoor use

●      NextGen Continuous Railing™: Ideal for facilities that require smooth, uninterrupted protection

●      NextGen Custom Railing™: Tailored to unique layouts and site-specific needs

Every solution is field-tested, easy to install and engineered to exceed safety standards.

Complying with OSHA Railing Standards Starts with the Right Systems

OSHA railing standards are strict and detailed, but compliance is critical. By following requirements carefully, employers can protect workers, prioritize safety and avoid costly violations. For businesses that are committed to a safe work environment, Safety Rail Source^® offers reliable, OSHA-compliant rail systems. Explore our railing solutions today, or contact our safety experts for personalized guidance and support.
