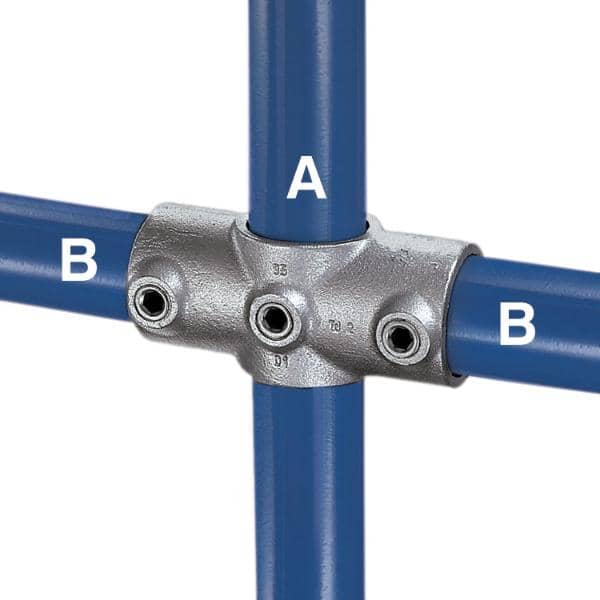

Type 26 - Two Socket Cross
Description
Usually paired with Type 25 to give a 90° joint between the middle rail and an intermediate upright on guardrail. The upright passes through the fitting.
Share:
Copied!
| Pipe OD | Meas. (in.) | |||
| Type | A | B | E | lbs. |
| 26-6 | 1.32" | 1.32" | 3.62 | 0.88 |
| 26-7 | 1.66" | 1.66" | 4.72 | 1.43 |
| 26-8 | 1.90" | 1.90" | 5.35 | 1.87 |
| 26-87 | 1.90" | 1.90" | 4.96 | 1.39 |
| 26-9 | 2.38" | 2.38" | 6.77 | 3.22 |
