Type 30 - 30° to 45° Adjustable Cross
Description

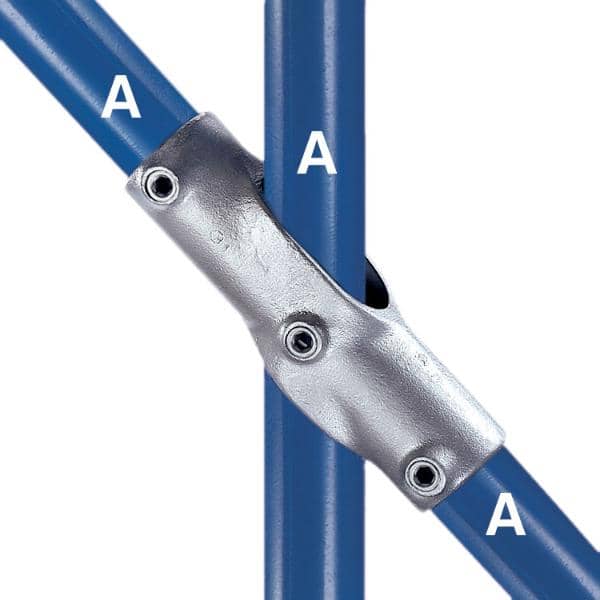

Designed as an alternative to the Type 28 fitting, this adjustable Kee Klamp® fitting can be used for guardrail on a slope between the mid-rail and an intermediate upright which is required to remain vertical. It may be used at any selected angle between 30° and 45°.
Share:
Copied!

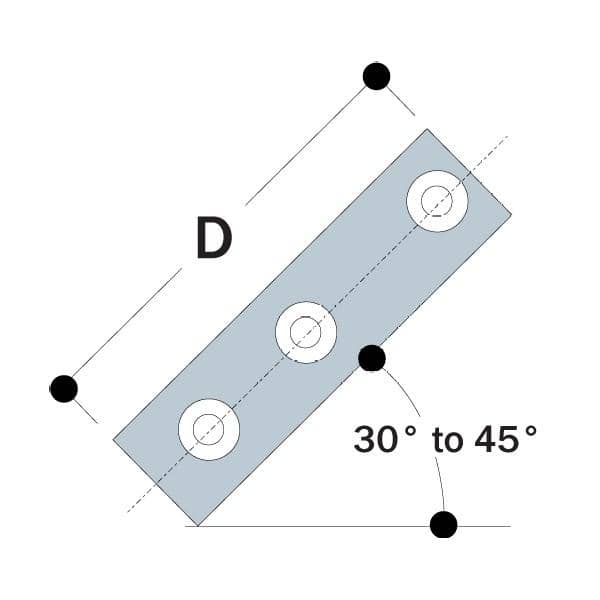

| Pipe OD | Meas. (in.) | ||
| Type | A | D | lbs. |
| 30-6 | 1.32" | 5.75 | 1.41 |
| 30-7 | 1.66" | 7.01 | 2.14 |
| 30-8 | 1.90" | 8.50 | 2.87 |
