Type L25 - Three Socket Tee
Type L25 - Three Socket Tee

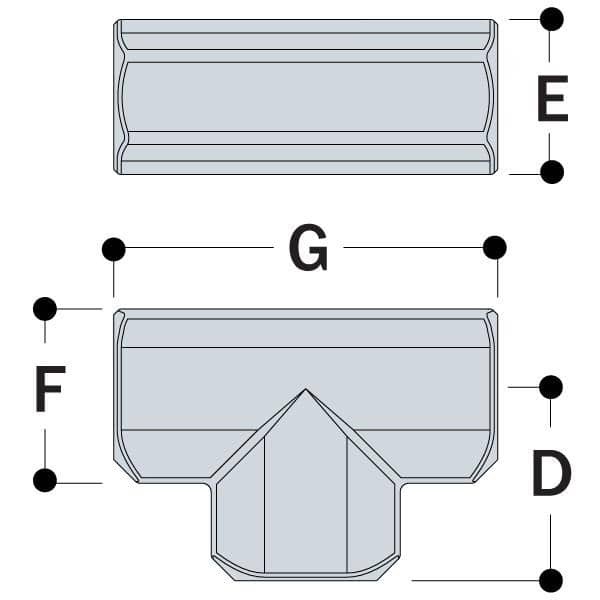

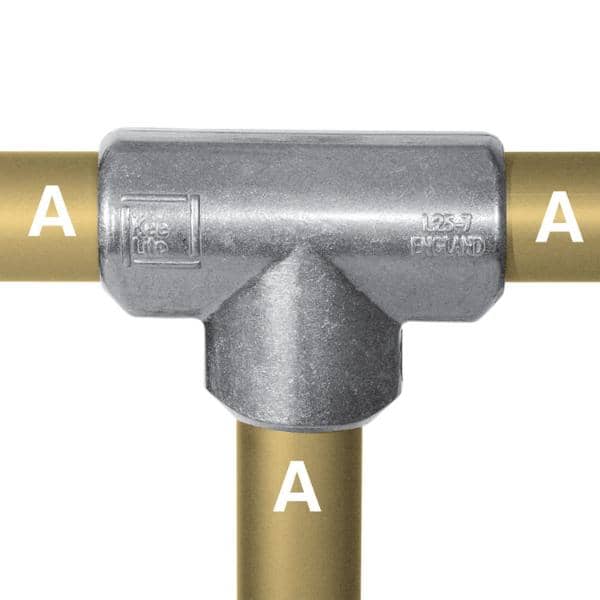

Commonly used as the 90° joint between the top rail and an intermediate upright on guardrail. As there are two socket set screws in the sleeve, this fitting can be used where a join is required in the horizontal tube. It is possible to use a Type L10 fitting in its vertical position in place of the Type L25, where a join in the tubing does not occur.
Pipe OD | Meas. (in.) | |||||
Type | A | D | E | F | G | lbs. |
L25-6 | 1.32" | 2.05 | 1.67 | 1.97 | 4.09 | 0.46 |
L25-7 | 1.66" | 2.56 | 2.09 | 2.32 | 5.12 | 0.77 |
L25-8 | 1.90" | 2.91 | 2.36 | 2.56 | 5.83 | 1.12 |
L25-9 | 2.38" | 3.54 | 2.91 | 3.07 | 7.09 | 1.81 |
Pipe Ref. |
Dimension (in) |
Weight |
|||||||||
Type |
A |
B | C |
D |
E |
F |
G |
H |
J |
ø | (lb) |
L25-6 |
6 |
2.05 |
1.67 |
1.97 |
4.09 |
|
0.46 |
||||
L25-7 |
7 |
2.56 |
2.09 |
2.32 |
5.12 |
|
0.77 |
||||
L25-8 |
8 | 2.91 | 2.36 | 2.56 | 5.83 | 1.12 | |||||
L25-9 |
9 | 3.54 | 2.91 | 3.07 | 7.09 | 1.81 |
