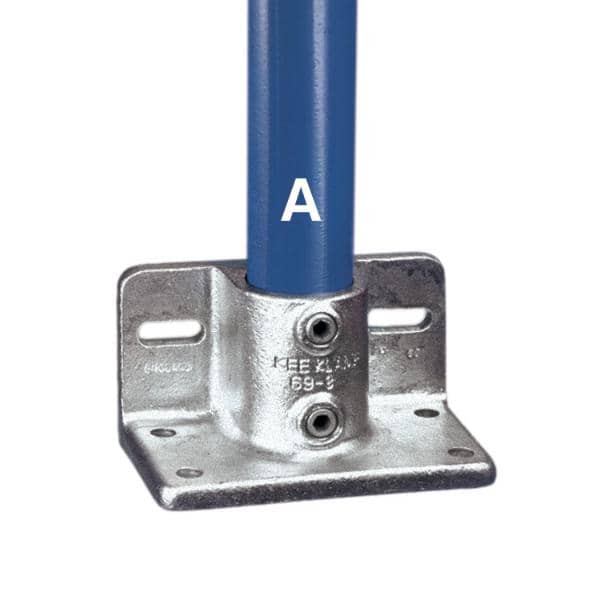

Type 69 - Railing Flange With Kick Plate Adaptor
Description
The Type 69 galvanized fitting has been designed for guardrail applications and provides the added benefit of attaching a Kick Plate (aka Toe Plate or Toe Board) to the base. The base plate holes are of sufficient diameter to allow for attachment with either a mechanical or chemical anchor, the side plate have slotted holes to allow for a degree of sideways movement for ease of installation. Ø indicates diameter of fixing holes.
Share:
Copied!

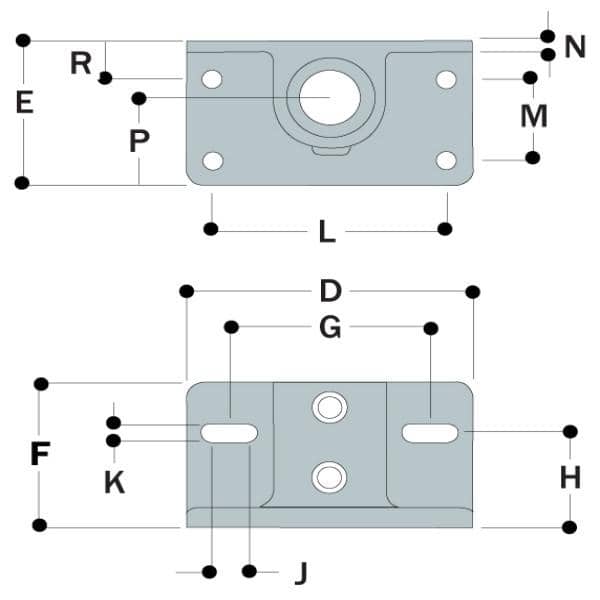

| Pipe OD | Meas. (in.) | ||||||||||||||
| Type | A | D | E | F | G | H | J | K | L | M | N | P | R | Ø | lbs. |
| 69-6 | 1.32" | 5.12 | 2.95 | 3.07 | 3.74 | 2.28 | 0.59 | 0.39 | 3.94 | 1.38 | 0.28 | 1.77 | 1.00 | 0.43 | 3.79 |
| 69-7 | 1.66" | 5.71 | 3.15 | 3.54 | 3.20 | 2.28 | 0.79 | 0.39 | 4.53 | 1.57 | 0.28 | 1.85 | 1.00 | 0.43 | 4.32 |
| 69-8 | 1.90" | 6.30 | 3.54 | 3.54 | 4.41 | 2.28 | 0.79 | 0.39 | 5.12 | 1.97 | 0.28 | 2.13 | 1.00 | 0.43 | 5.07 |
