Type 68 - Wall Flange
Description

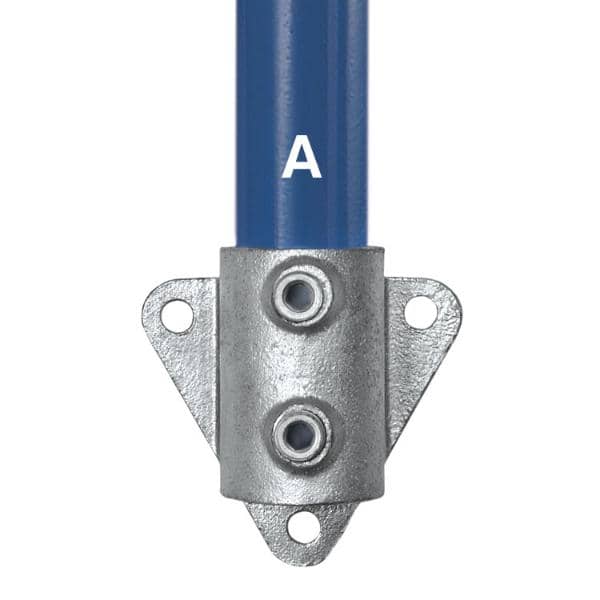

This fitting is designed for palm fixing guard railing and balustrading to walls, parapets, stairs, and ramps. The upright cannot pass through the socket. Ø indicates diameter of fixing hole. Note: Should an upright be required to pass through the fittings, the base can be bored out to order. If the upright is required to pass through the fitting by machining out the base stop, the bottom fixing hole will become unusable.
Share:
Copied!
| Pipe OD | Meas. (in.) | ||||||||||

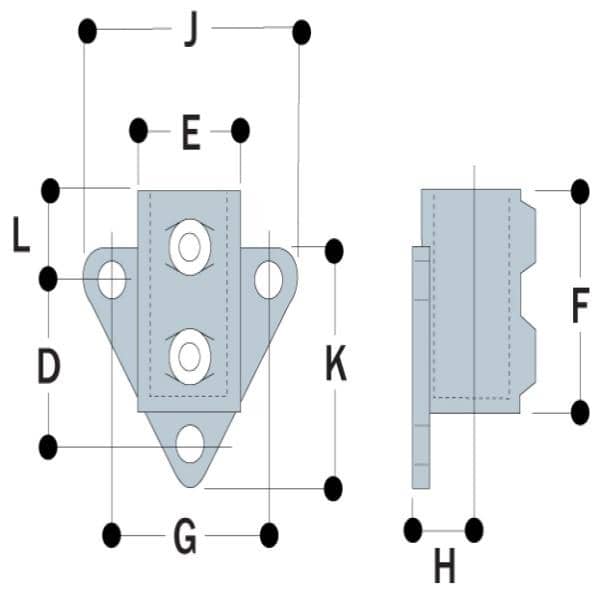

| Type | A | D | E | F | G | H | J | K | L | Ø | lbs. |
| 68-6 | 1.32" | 2.48 | 1.77 | 3.03 | 2.80 | 0.94 | 3.78 | 3.46 | 1.00 | 0.43 | 1.37 |
| 68-7 | 1.66" | 2.83 | 2.16 | 3.27 | 3.27 | 1.10 | 4.25 | 3.90 | 1.00 | 0.43 | 1.76 |
| 68-8 | 1.90" | 3.07 | 2.36 | 3.50 | 3.39 | 1.22 | 4.37 | 4.05 | 1.00 | 0.43 | 2.09 |
