Type 67 - Angle Flange
Description

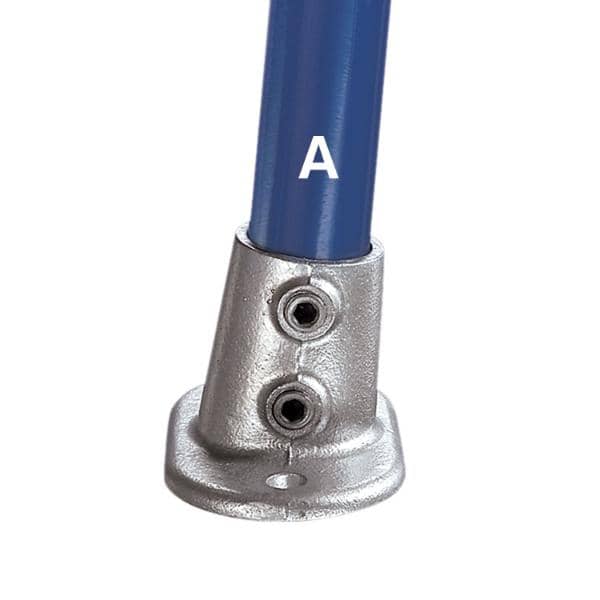

The Type 67 has been designed to allow the upright to pivot in the barrel, providing an angular displacement from 3° up to a maximum of 11°, measured from the vertical. Ideal to secure balustrade and guardrail systems on access ramps or other types of slopes. Ø indicates diameter of fixing holes.
Share:
Copied!

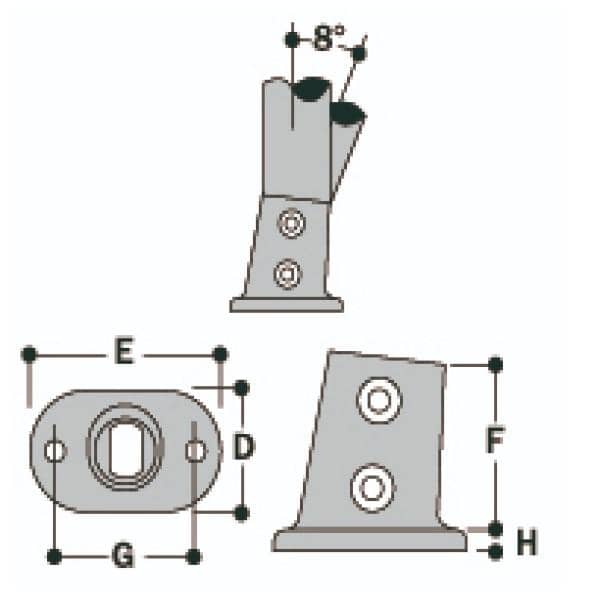

| Pipe OD | Meas. (in.) | |||||||
| Type | A | D | E | F | G | H | Ø | lbs. |
| 67-8 | 1.90" | 3.78 | 6.10 | 3.15 | 4.53 | 0.38 | 0.55 | 2.87 |
