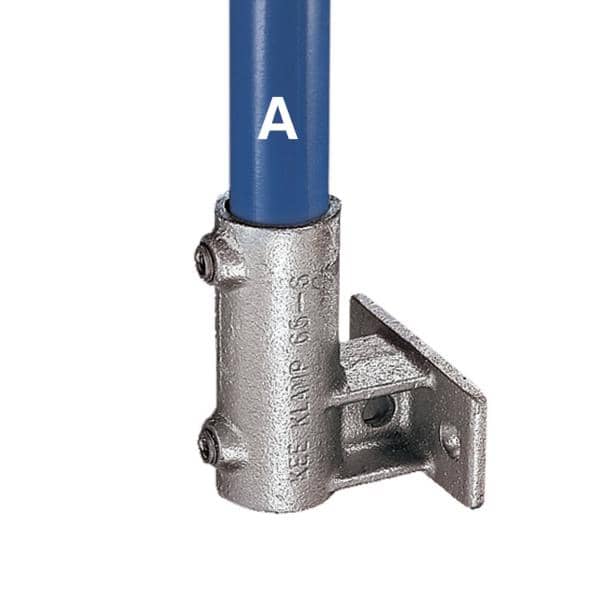

Type 65 - Standard Horizontal Railing Base
Description
This fitting is designed for palm fixing guardrail and balustrading to walls, parapets, steps, and ramps. Only available in size 6. The upright cannot drop through the socket. Ø indicates diameter of fixing holes. Note: Should an upright be required to pass through the fittings, the base can be bored out to order.
Share:
Copied!

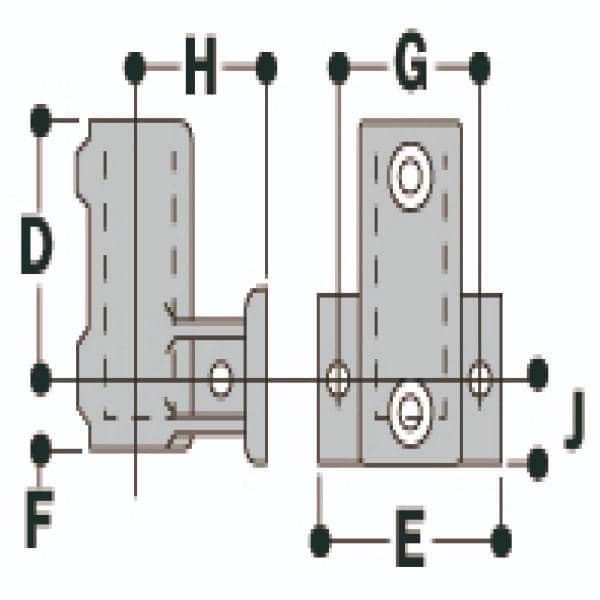

| Pipe OD | Meas. (in.) | ||||||||
| Type | A | D | E | F | G | H | J | Ø | lbs. |
| 65-6 | 1.32" | 3.27 | 3.86 | 0.87 | 2.64 | 2.24 | 0.87 | 0.55 | 1.68 |
