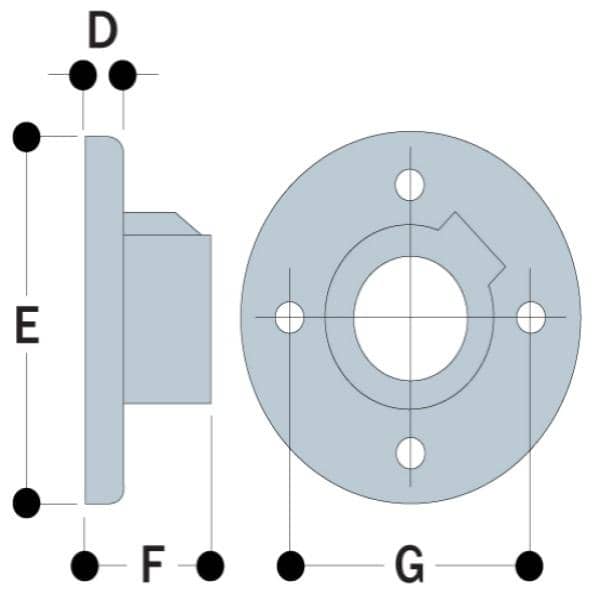

A heavy duty flange, with wide base, for spreading loads over a large surface area. This flange, with holes provided for countersunk head screw fixings only, is for use on structures where the fixing required is positional only. Frequently used as a wall fixing bracket. Ø indicates diameter of fixing holes. Warning! It is not recommended for use as a base flange to support guardrail, balustrading, or other types of structures.
Nominal Pipe Size
inches
lbs
Type
A
B
C
D
E
F
G
H
Ø
60-5
3/4"
5.12
2.52
3.11
0.31
2.54
60-6
1"
5.51
3.39
60-7
1 1/4"
5.87
3.74
2.87
60-8
1 1/2"
6.14
4.02
3.26
