NextGen Tensioned WebRail™
Description

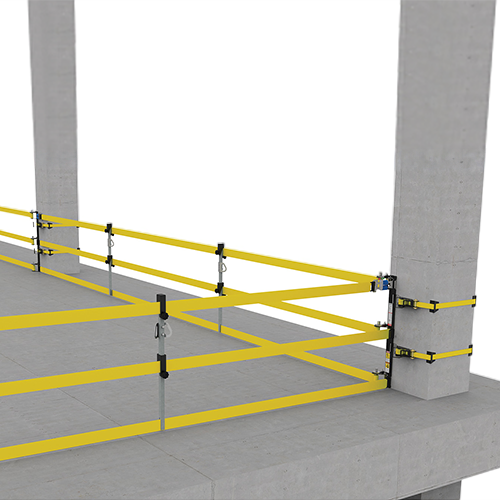

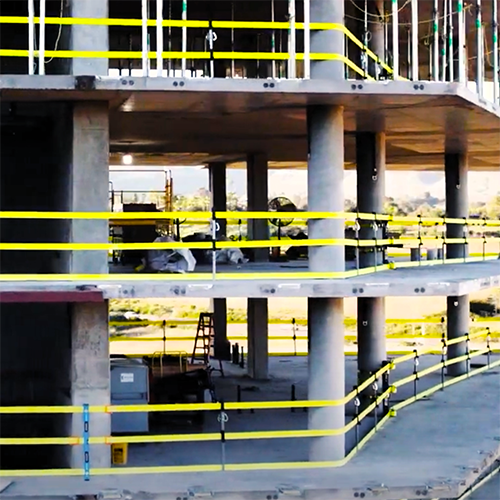

NextGen Tensioned WebRail™ fall protection is ideal for multi-story construction projects and can replace expensive cable or cumbersome 2x4 railing. WebRail is quick to set up and break down and is stored in a neatly packaged, reusable storage system. Also, the system provides tie-offs for 4 users working outside the web barrier.
The 4” webbing is rated at an impressive 20,000 lbs., exceeding OSHA 1926 and 1910 requirements. The top rail compression indicator ensures OSHA compliance of a 200 lbs. load. It’s fire retardant, UV-resistant, and chafe-resistant, ensuring durability and longevity. It is designed for use with round and square columns, offering adaptability to various structures. WebRail can be set up in just a few hours whereas cable or 2x4s normally take days to put together. When finished, simply roll up the WebRail into its convenient 48" x 40"’ storage container (included) and it’s ready to be transported to the next job. See our FAQs, videos and other documents below for more details.
WebRail is available in two kits. Kit 1: 180 LF, weighing 703 lbs. and Kit 2: 360 LF, weighing 932 lbs.
For a free demonstration, contact Safety Rail Source at 877-723-3766 and speak with Chad.
OSHA compliant edge protection
OSHA compliant tie-off for four workers

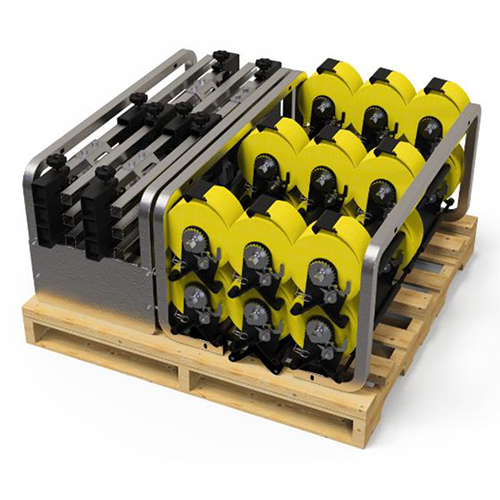

Storage system designed with 48" x 40" stackable pallets
Lightweight for easy transport
Kits for either 180 or 360 LF of protection
Self-retracting column binder straps
Re-usable job after job
Fits columns and beams up to 30 inches in diameter
Bottom strap floats above surface, does not impede concrete pour
Bottom strap acts as kick plate

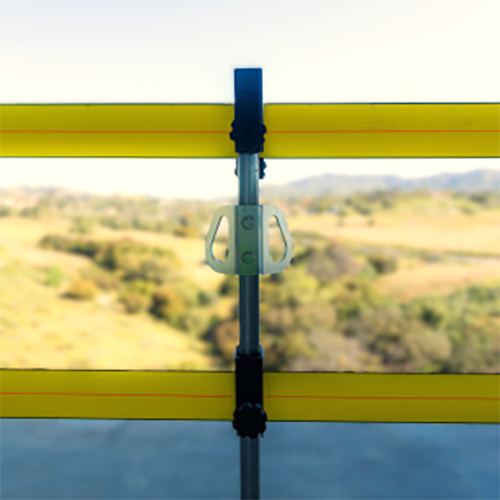

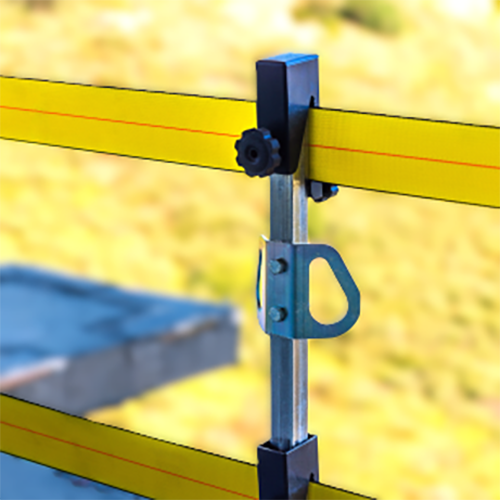

Designed with intermediate fall arrest support posts
Engineered to prevent collision with lower floor in the event of a fall

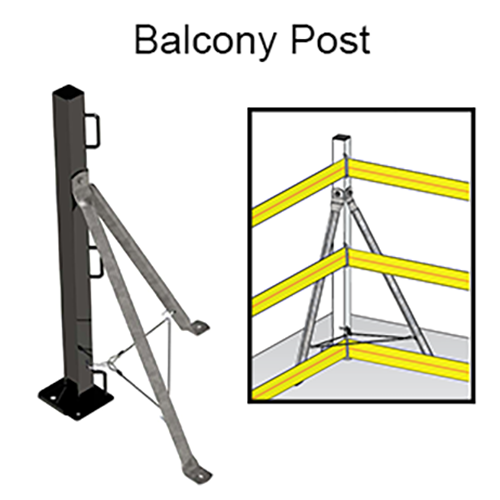

Balcony post is available when balconies are present

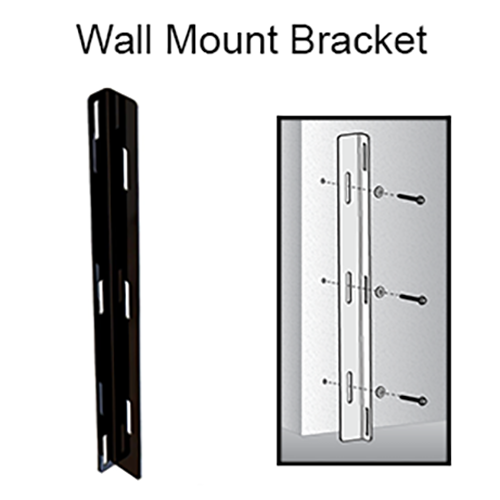

Wall mount bracket is available when columns aren’t
Imprint your company name and logo on strapping
Made in U.S.A.
Materials:
Top, mid, and toe nylon webbing rated at 20,000 lbs.
Powder coated steel posts and brackets
Zinc plated hardware

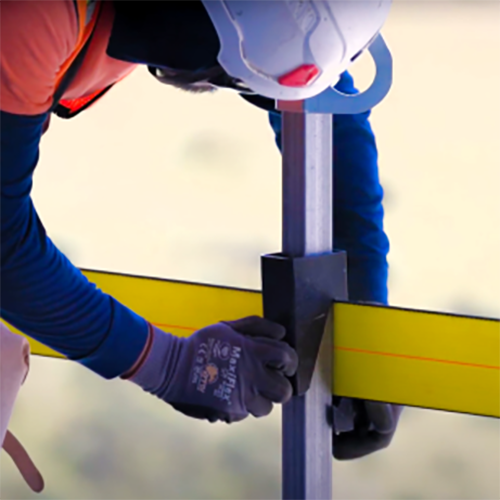

Installation:
Unpack the system
Run straps around concrete or steel columns
Install top, mid, and bottom straps
Tighten straps until tension indicator is green
Roll up straps to repack the system
