NextGen Continuous Railing™ - Flat Roof
Description

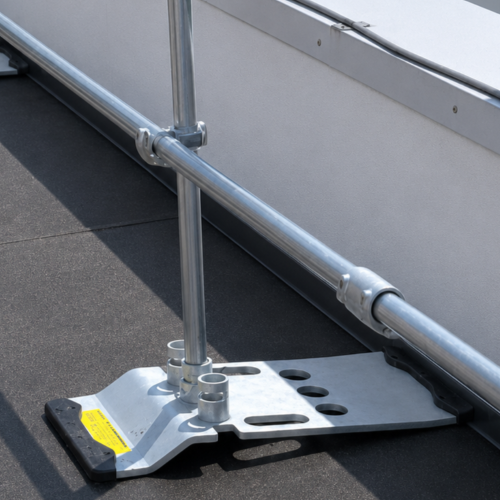

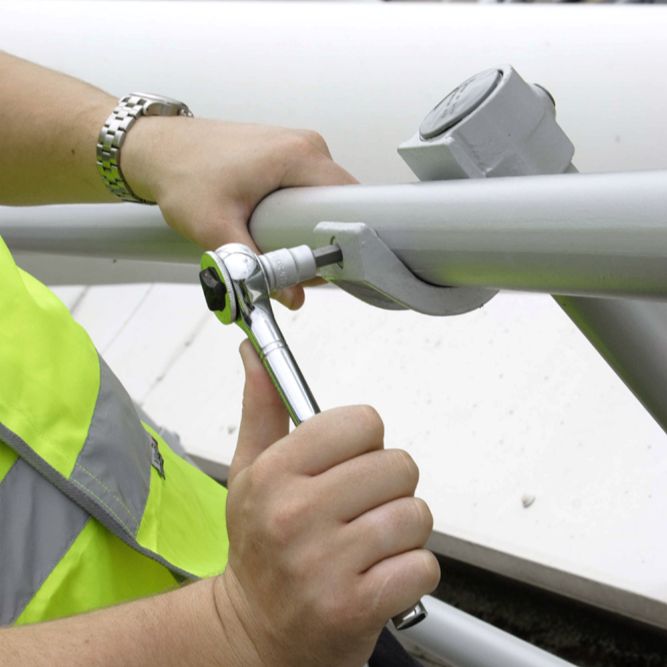

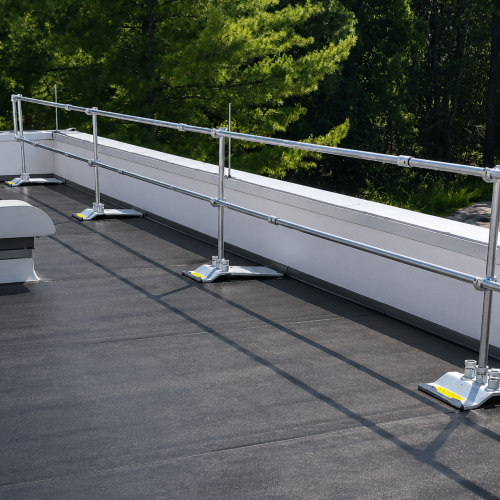

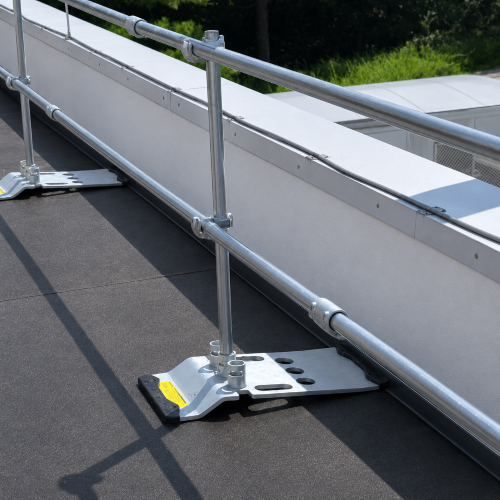

Continuous Railing for flat roofs uses the NextGen 3000™ 58 lb. clamping base which accommodates 1.66 OD or 1.9 OD posts and rails. Posts are inserted in the clamp at the top of the base and tightened using a socket wrench. These clamping bases make for a solid railing system with no play. The railing is completed by adding top and mid rails into the drop-in fittings. The top and mid rails are connected in series with a Type 14 coupling. Guardrail will arrive as 10' lengths of pipe to be connected via fittings provided. Some field cutting may be necessary during installation. Toe Boards / Kick Plates are also available. Railing and bases will not penetrate the roof and are OSHA compliant.
The standard finish for rails and bases is galvanized with powder coating available in Custom Colors.
Note: Minimum 5 ft. returns are required at terminations to satisfy OSHA standards.
Contact Us for design assistance.
Features:
OSHA compliant engineered design
Lightweight, stackable bases with grab handles
Bases designed with neoprene rubber feet
High quality / Low cost
Simple installation
Technical Specifications:
Tested to exceed OSHA Standards
58 lbs. steel bases
Continuous top rails, mid rails and fittings
Custom colors available
Installation:
Tie-off according to OSHA Standards
Remove stones from roof at base location
Place bases 18 in. from the roof edge
Assemble railing posts with drop in fittings and cap
Insert posts into base socket
Install top and mid rails into drop fittings
Connect railings with type 14 coupling
Install 5 ft. returns at terminations
Tighten all set screws and nuts
