NextGen 3000™ Universal Guardrail
Description

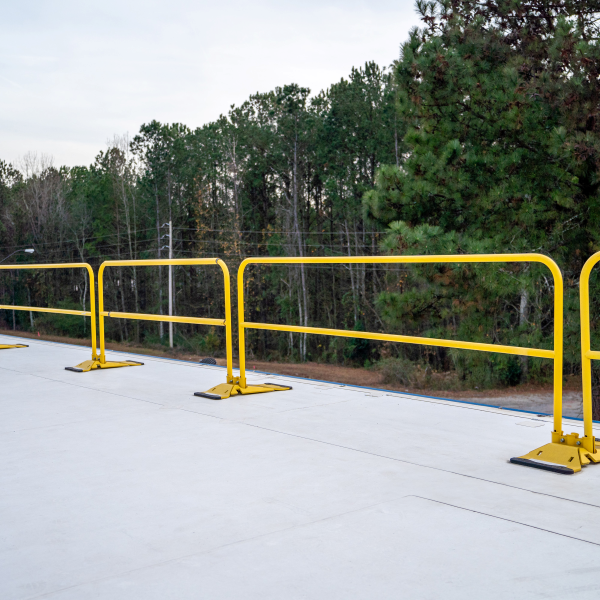

NextGen 3000™ Universal Guardrail is a state-of-the-art, non-penetrating, modular rooftop safety railing system. It's OSHA compliant and outperforms all other roof fall protection products.

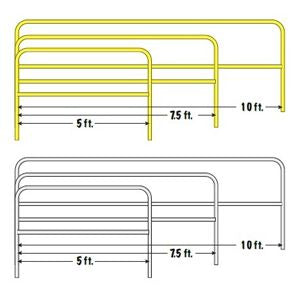

NextGen 3000™ Universal Rails are available in pre-assembled 5ft. (14lbs), 7.5ft. (21 lbs.) and 10ft. (29 lbs.) steel panels. All rails are 42 inches in height.

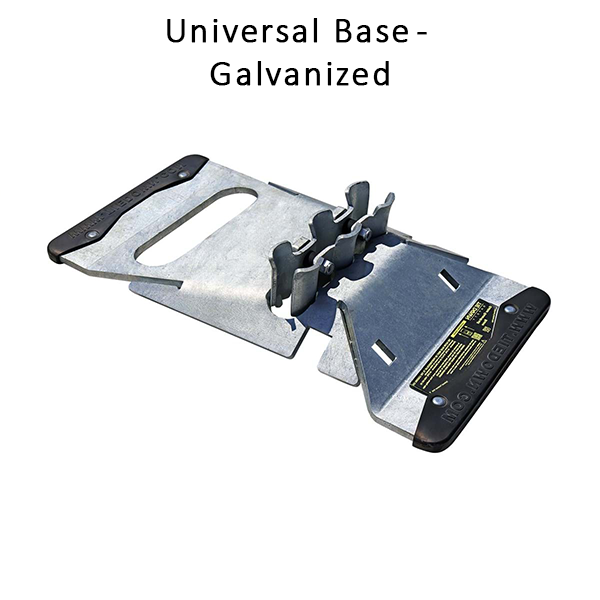

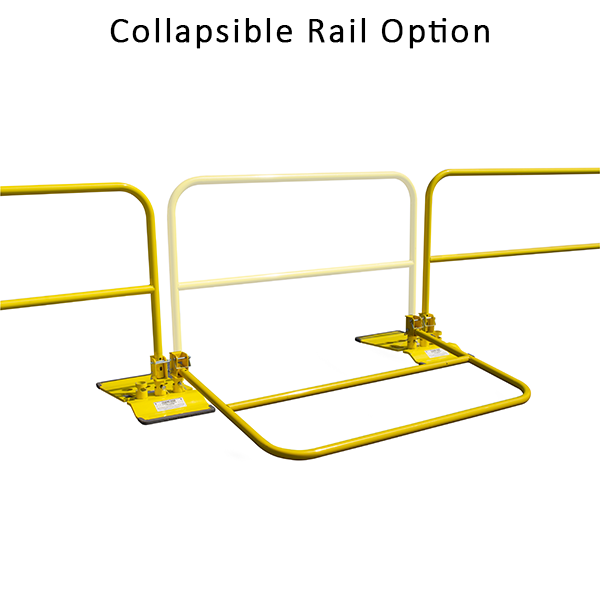

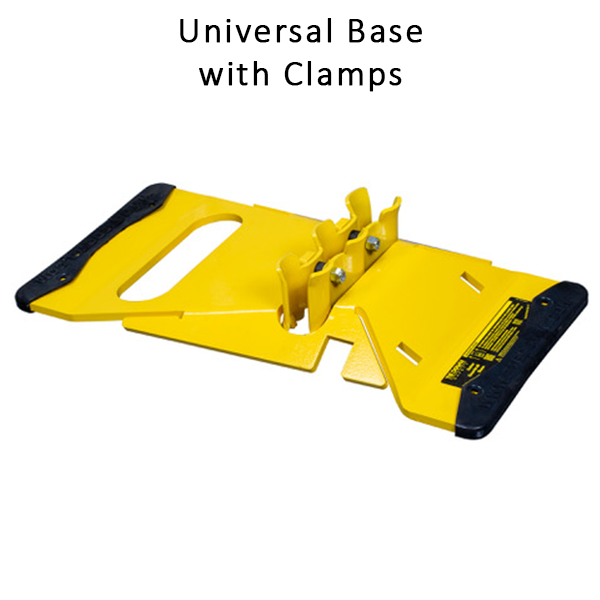

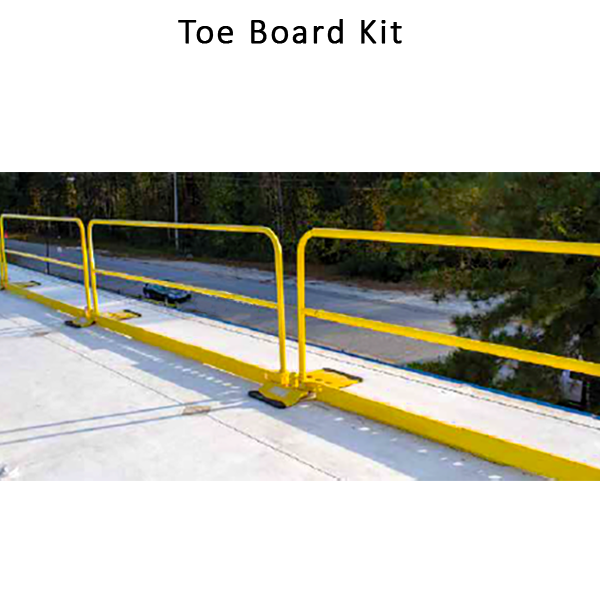

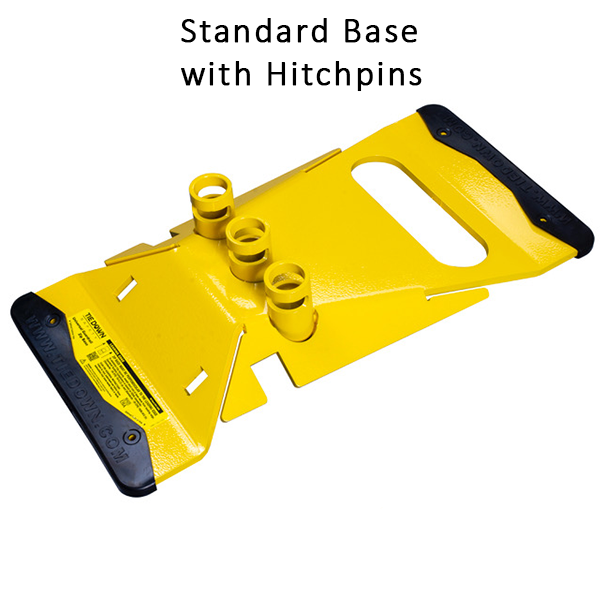

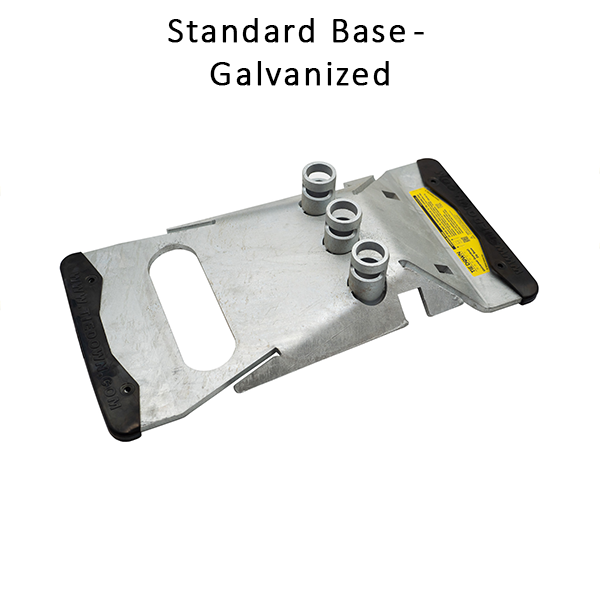

The Standard Bases with Hitchpins are designed to specifically fit with the NextGen 3000 Universal Rails. The Universal Bases with Clamps can be used with different sized railing as well as NextGen 3000 Rails. Each base weighs only 58 lbs. The system is free-standing & non-penetrating so it won't damage the roof membrane. Toe Boards / Kick Plates are also available as well as Collapsible Rail sockets.

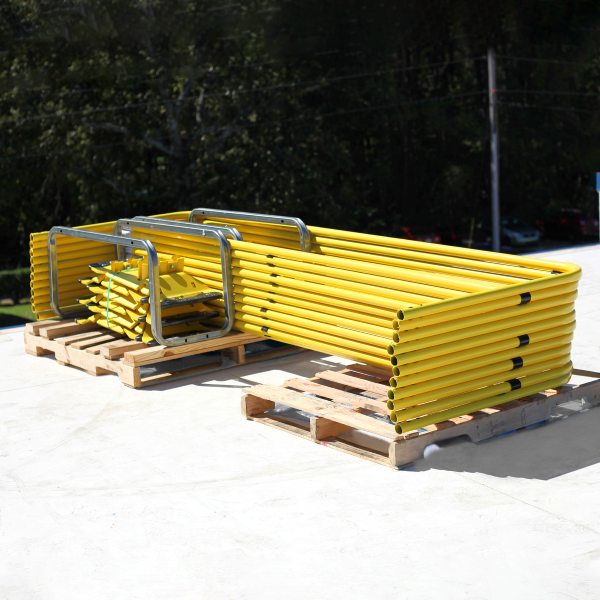

Stack Pallets are available which include 11, 10 ft. Rails and 12 Standard Bases. Each stack pallet weighs 1,142 lbs.

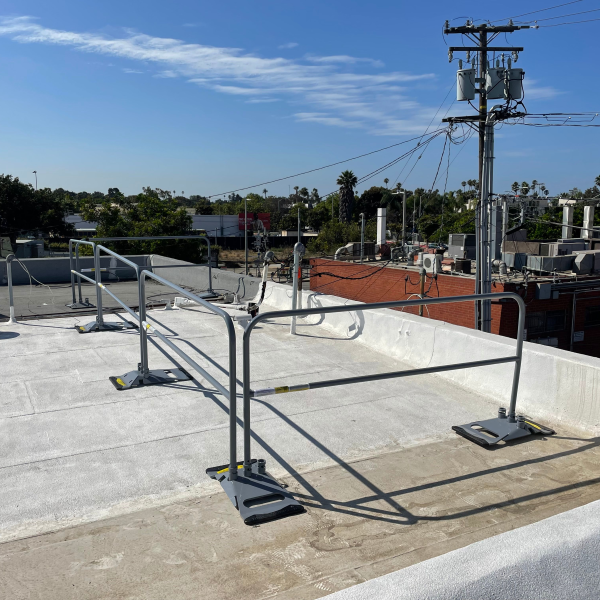

Rails and Bases are available in galvanized finish or durable powder coating - yellow finish is standard with Custom Colors available.
Note: Minimum 5 ft. returns are required at terminations to satisfy OSHA standards.
Contact Us for design assistance.
Features:
OSHA compliant engineered design

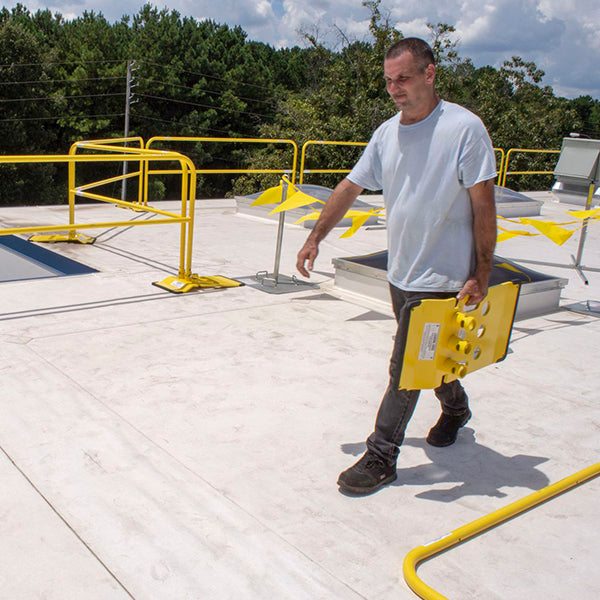

Lightweight, stackable bases with grab handles
Bases designed with neoprene rubber feet
High quality / Low cost
Simple installation
Technical Specifications:
Tested to exceed OSHA Standards
58 lbs. steel bases
Pre-assembled 1.66 OD panels (5ft, 7.5ft, 10ft)
Powder coating - yellow finish standard (other colors available) or galvanized finish available

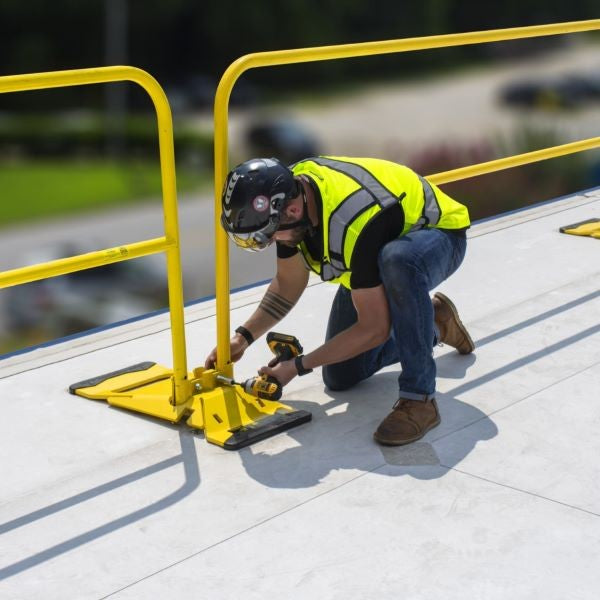

Installation:

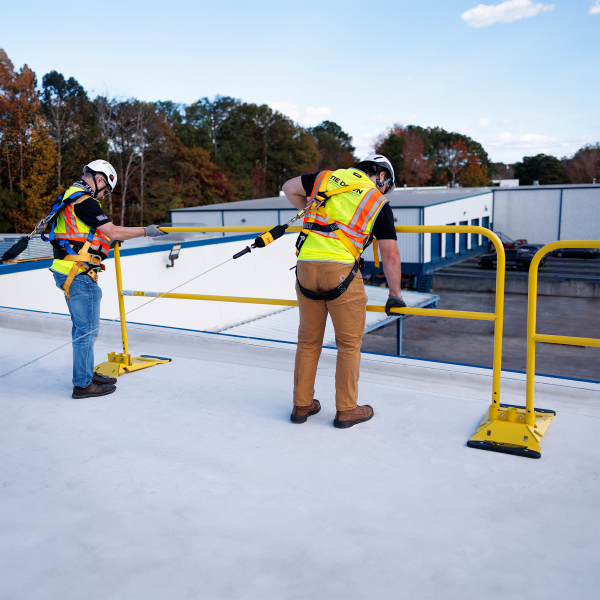

Tie-off according to OSHA Standards
Remove stones from roof at base location
Place bases 18 in. from the roof edge
Insert railing panels into base sockets
Secure railing to base using hitch pin
Install 5 ft. returns at terminations
OSHA TESTING - NEXTGEN 3000 VS. THE COMPETITION
NextGen 3000™ Universal Guardrail
| Product / Finish | Price |
| 5 ft. Rails - Yellow | $170.00 |
| 5 ft. Rails - Galvanized | $228.00 |
| 7.5 ft. Rails - Yellow | $187.00 |
| 7.5 ft. Rails - Galvanized | $250.00 |
| 10 ft. Rails - Yellow | $207.00 |
| 10 ft. Rails - Galvanized | $270.00 |
| Standard Bases w/ Hitchpins - Yellow | $260.00 |
| Standard Bases w/ Hitchpins - Galvanized | $299.00 |
| Universal Bases w/ Clamps - Yellow | $298.00 |
| Universal Bases w/ Clamps- Galvanized | $337.00 |
