Type 60 - Extra Heavy Flange
Description

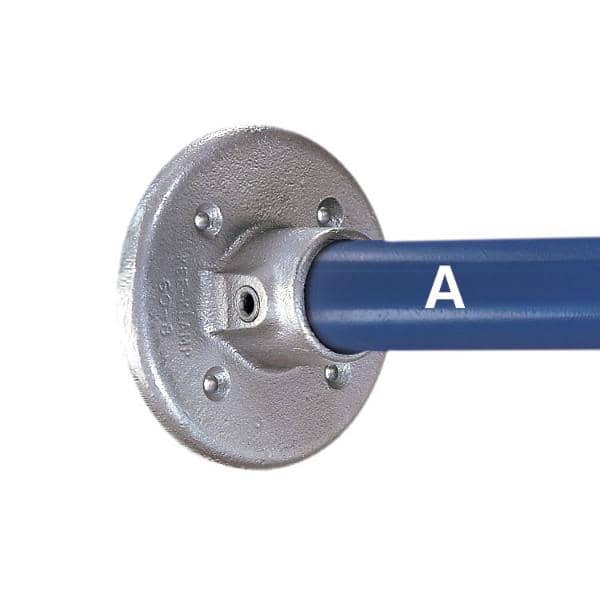

A heavy duty flange, with wide base, for spreading loads over a large surface area. This flange, with holes provided for countersunk head screw fixings only, is for use on structures where the fixing required is positional only. Frequently used as a wall fixing bracket. Ø indicates diameter of fixing holes. Warning! It is not recommended for use as a base flange to support guardrail, balustrading, or other types of structures.
Share:
Copied!

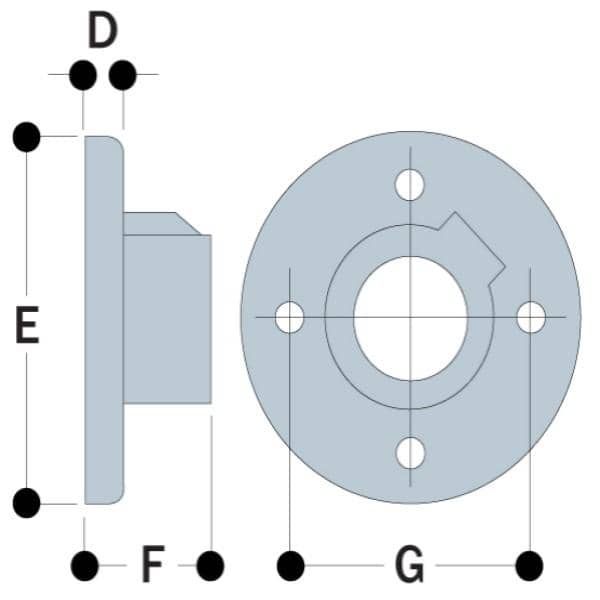

| Pipe OD | Meas. (in.) | ||||||
| Type | A | D | E | F | G | Ø | lbs. |
| 60-6 | 1.32" | 0.55 | 5.51 | 2.52 | 3.39 | 0.31 | 2.54 |
| 60-7 | 1.66" | 0.55 | 5.87 | 2.52 | 3.74 | 0.31 | 2.87 |
| 60-8 | 1.90" | 0.55 | 6.14 | 2.52 | 4.02 | 0.31 | 3.26 |
