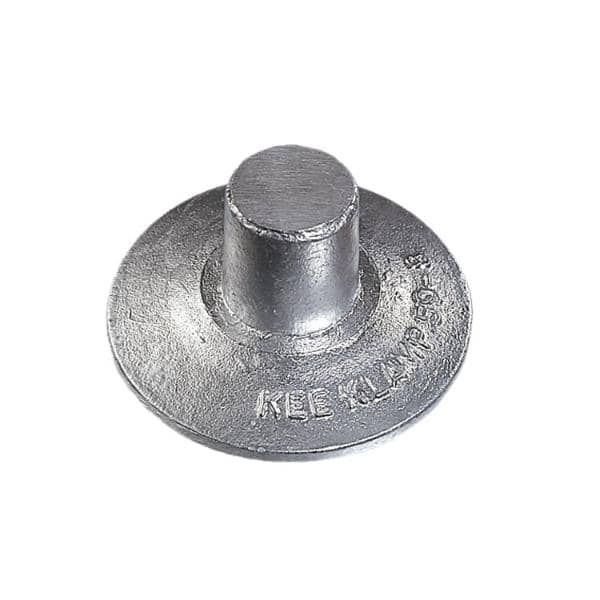

Type 59 - Spigot Flange
Description
A spigot flange which fits inside the pipe and is not secured by a set screw. Type 59 can only be used with schedule 40 pipe and in light self supporting structures. Type 59 is manufactured in aluminum. Note: No fixing holes are provided in this fitting.
Share:
Copied!
| Pipe OD | Meas. (in.) | ||||
| Type | A | D | E | F | lbs. |
| 59-6 | 1.32" | 1.02 | 3.43 | 1.26 | 0.26 |
| 59-7 | 1.66" | 1.30 | 3.86 | 1.38 | 0.44 |
| 59-8 | 1.90" | 1.50 | 4.05 | 1.61 | 0.62 |
| 59-9 | 2.38" | 2.01 | 4.33 | 1.89 | 0.66 |
