Type 61 - Flange
Description

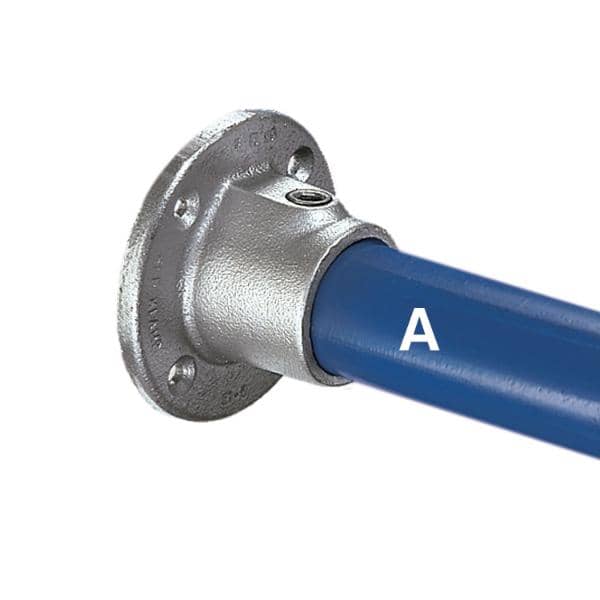

This flange, with holes provided for countersunk head screw fixings only, is for use on structures where the fixing required is positional only. Frequently used as a wall fixing bracket. Ø indicates diameter of fixing holes. Warning! It is not recommended for use as a base flange to support guardrail, balustrading, or other types of structures.
Share:
Copied!

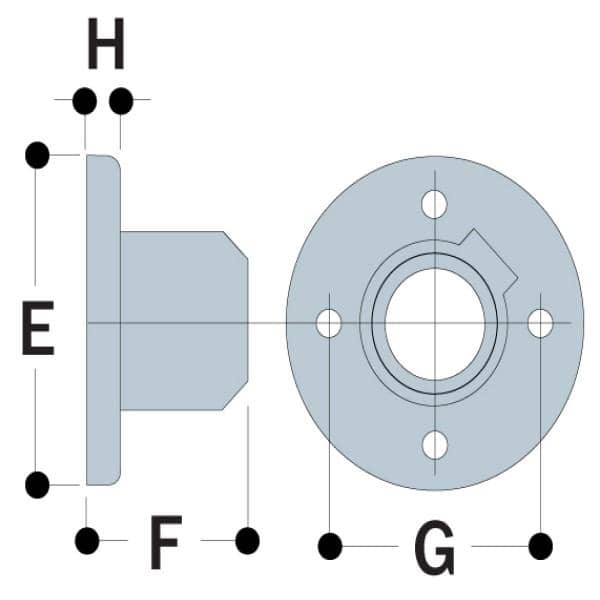

| Pipe OD | Meas. (in.) | ||||||
| Type | A | D | E | F | G | Ø | lbs. |
| 61-6 | 1.32" | 0.25 | 3.54 | 1.89 | 2.52 | 0.26 | 1.10 |
| 61-7 | 1.66" | 0.25 | 4.02 | 2.01 | 2.99 | 0.31 | 1.37 |
| 61-8 | 1.90" | 0.25 | 4.49 | 2.32 | 3.50 | 0.31 | 1.48 |
| 61-9 | 2.38" | 0.39 | 5.00 | 2.48 | 3.74 | 0.39 | 2.38 |
