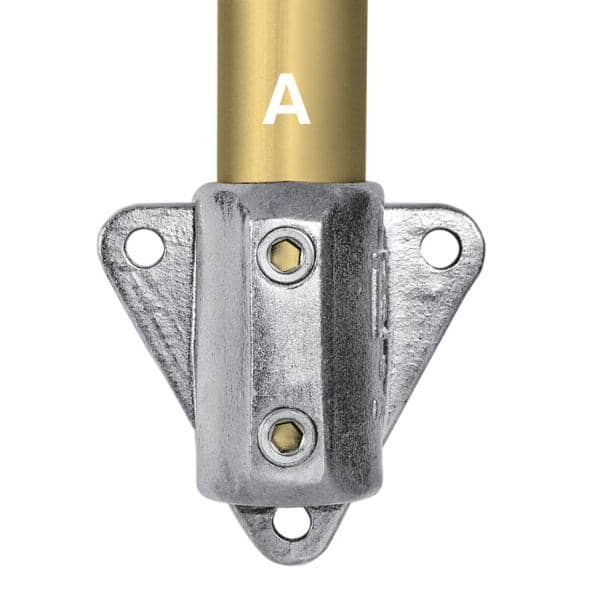

Type L68 - Wall Flange
Description
Side palm fixing for guardrail and balustrading to walls, parapets, steps and ramps. The upright cannot drop through the socket. Ø indicates diameter of fixing holes. Note: If the upright is required to pass through the fitting by machining out the base stop, the bottom-fixing hole will be unusable.
Share:
Copied!

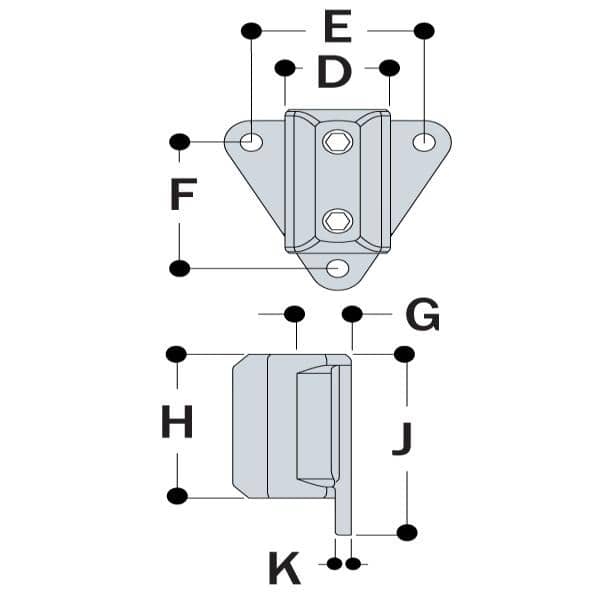

| Pipe OD | Meas. (in.) | |||||||||
| Type | A | D | E | F | G | H | J | K | Ø | lbs. |
| L68-6 | 1.32" | 1.67 | 2.80 | 2.52 | 0.95 | 2.95 | 3.98 | 0.31 | 0.45 | 0.53 |
| L68-7 | 1.66" | 2.09 | 3.39 | 3.15 | 1.10 | 3.50 | 4.45 | 0.31 | 0.45 | 0.77 |
| L68-8 | 1.90" | 2.36 | 3.78 | 3.62 | 1.22 | 3.94 | 5.04 | 0.31 | 0.45 | 0.95 |
