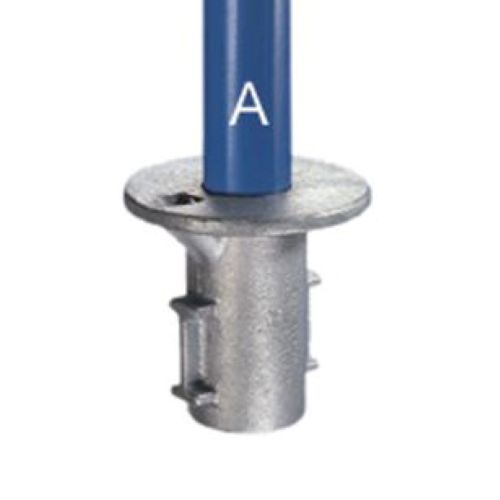

Type 66 - Ground Socket
Description
A ground socket fitting is used when uprights are required to be removable. It incorporates a socket set screw fixing and can be supplied with a plug to fill the hole when the pipe is removed.
Share:
Copied!
| Pipe OD | Meas. (in.) | |||||
| Type | A | D | E | F | G | lbs. |
| 66-6 | 1.32" | 5.00 | 4.80 | 0.38 | 4.53 | 4.12 |
| 66-7 | 1.66" | 5.51 | 5.31 | 0.38 | 5.00 | 5.12 |
| 66-8 | 1.90" | 5.51 | 5.31 | 0.38 | 5.00 | 5.51 |
