Skylight Screen - Model STS
Description

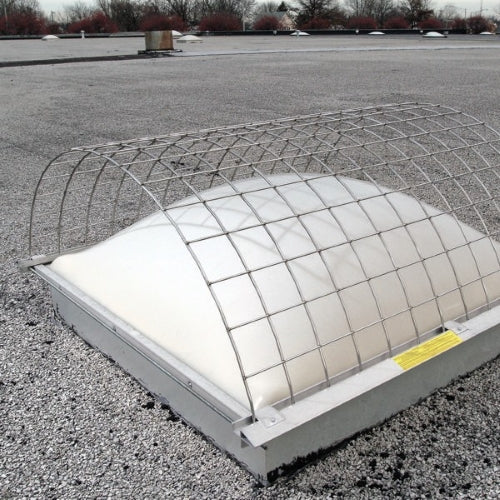

The NextGen Domed Skylight Safety-Screen™, Model STS, provides an easily installed skylight cover in compliance with OSHA Code: 1910.28(b)(3)(i). The skylight fall protection system guards against injuries or death from accidental falls through the lens of the skylight.

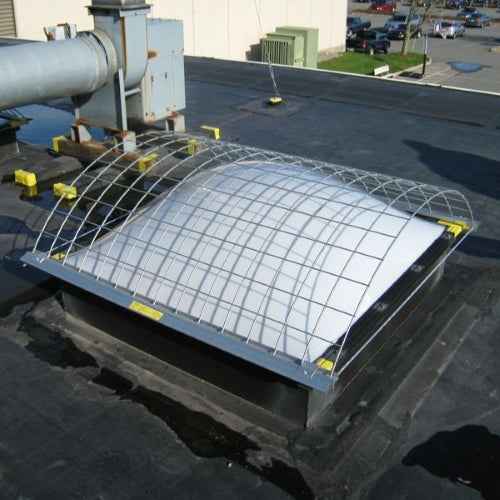

The curb-mounted skylight screen attaches to the outer frame of a skylight using two extruded aluminum rails that clamp to the curb by tightening the threaded rods at each end of the skylight. This non-penetrating compression installation eliminates possible leaks caused by fastening the skylight screen to the skylight frame. The semi-circular, heavy metal 4 x 4 grid rests in a channel on the aluminum rail and is secured using aluminum clips.
Model STS skylight guards are available in galvanized or stainless steel wire mesh. The screen can be special ordered with a design to withstand a 400 pound load to comply with Cal-OSHA standards.
See Documents tab below for Measurement Form and other important documents.
|
Part # |
Width Range |
Length Range |
Max. Height |
Material |
|
Domed |
||||
|
STS2424G or S |
12"-24" |
12"-24" |
8" |
Galvanized or S for stainless steel |
|
STS2436G or S |
12"-24" |
29"-40" |
8" |
Galvanized or S for stainless steel |
|
STS2448G or S |
24"-35" |
41"-52" |
10" |
Galvanized or S for stainless steel |
|
STS2460G or S |
24"-35" |
53"-64" |
10" |
Galvanized or S for stainless steel |
|
STS2472G or S |
24"-35" |
65"-80" |
10" |
Galvanized or S for stainless steel |
|
STS2496G or S |
24"-35" |
81"-104" |
10" |
Galvanized or S for stainless steel |
|
STS3636G or S |
36"-41" |
24"-40" |
13" |
Galvanized or S for stainless steel |
|
STS3648G or S |
36"-41" |
41"-52" |
13" |
Galvanized or S for stainless steel |
|
STS3660G or S |
36"-41" |
53"-64" |
13" |
Galvanized or S for stainless steel |
|
STS3672G or S |
36"-41" |
65"-80" |
13" |
Galvanized or S for stainless steel |
|
STS3696G or S |
36"-41" |
81"-104" |
13" |
Galvanized or S for stainless steel |
|
STS4848G or S |
42"-57" |
47"-52" |
14" |
Galvanized or S for stainless steel |
|
STS4860G or S |
42"-57" |
53"-64" |
14" |
Galvanized or S for stainless steel |
|
STS4872G or S |
42"-57" |
65"-80" |
14" |
Galvanized or S for stainless steel |
|
STS4896G or S |
42"-57" |
81"-104" |
14" |
Galvanized or S for stainless steel |
|
STS6060G or S |
58"-70" |
52"-64" |
14" |
Galvanized or S for stainless steel |
|
STS6072G or S |
58"-70" |
65"-80" |
14" |
Galvanized or S for stainless steel |
|
STS6096G or S |
58"-70" |
81"-104" |
14" |
Galvanized or S for stainless steel |
|
STS60120G or S |
58"-70" |
105"-128" |
14" |
Galvanized or S for stainless steel |
|
Please call for custom sizes. |
||||
Features:

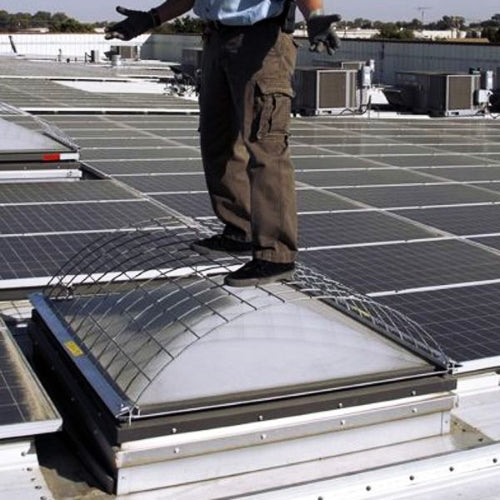

OSHA compliant at 200 lb. force
Cal OSHA compliant at 400 lb. force
Clamp-on attachment
Lightweight
Materials:
4in x 4in wire mesh grid
Galvanized mesh (standard)
Stainless steel mesh (optional)
Extruded aluminum frames
Stainless Steel rods
Also available in Stainless Steel
Installation:
Attach aluminum frame & threaded rod to skylight
Tighten threaded rods
Insert screen into aluminum frame
Install aluminum clips over screen at aluminum frame
Installation time once material is staged is 10 minutes
