Skylight Screen - Model SRS
Description

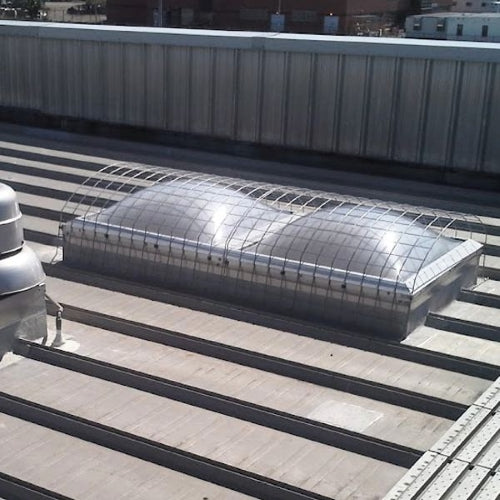

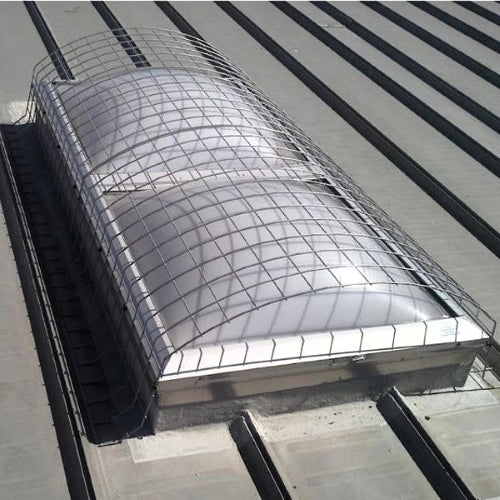

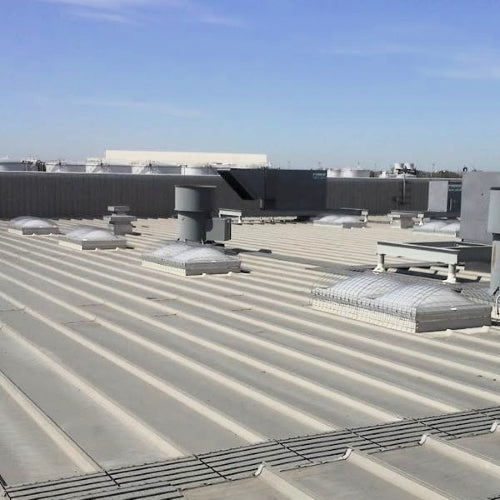

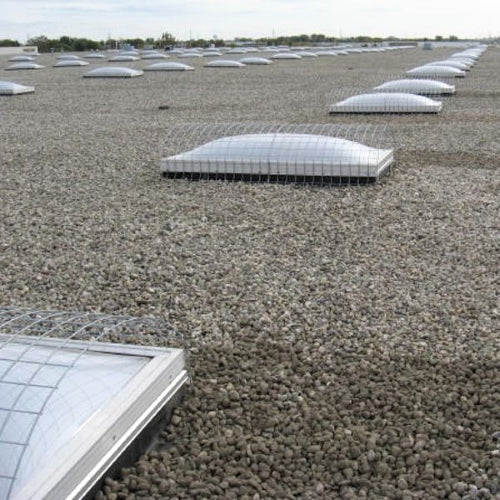

The NextGen Domed Skylight Safety-Screen™, Model SRS, provides an easily installed skylight cover in compliance with OSHA Code: 1910.28(b)(3)(i). The skylight fall protection system guards against injuries or death from accidental falls through the lens of the skylight.

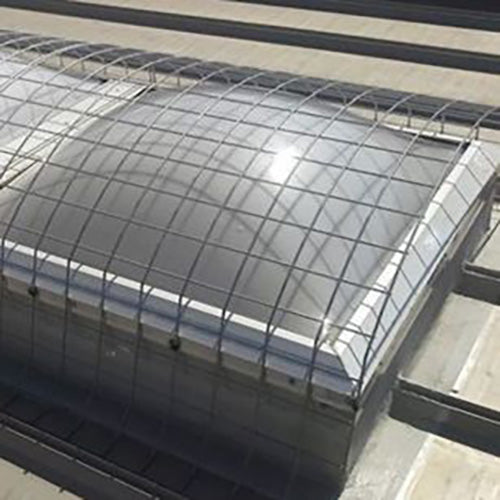

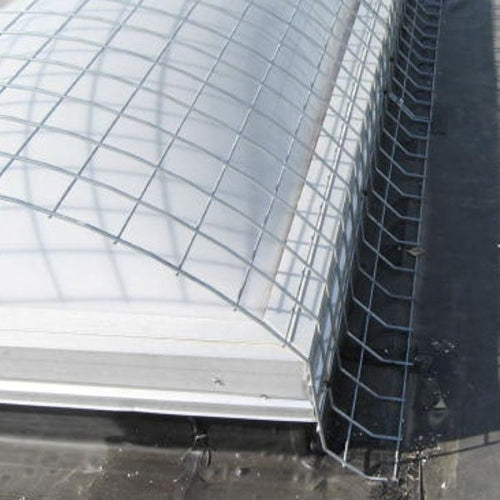

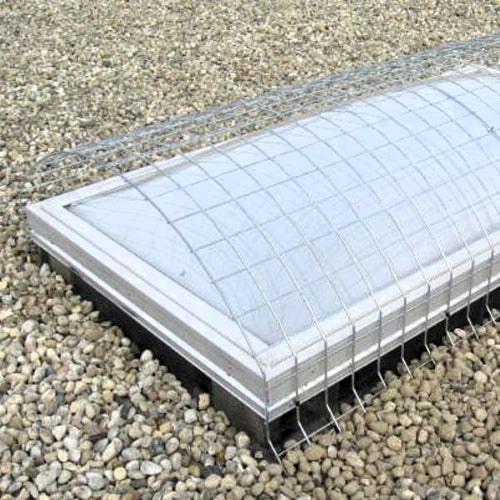

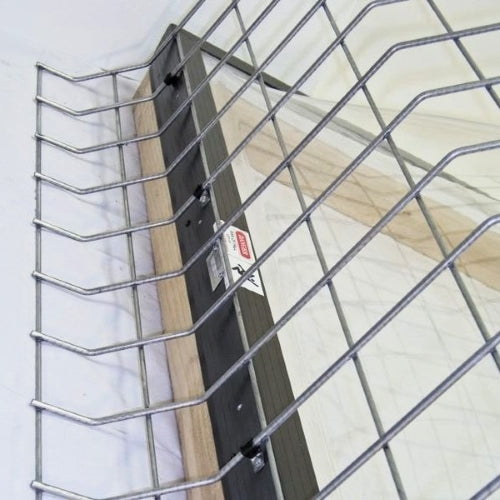

The heavy metal 4 x 4 grid rest on the roof surface and is attached to the skylight frame. Screws fasten the screen to the skylight frame. The skylight covering rests on the roof surface and is engineered to transfer the impact of the fall load directly to the roof and not the skylight.
Model SRS skylight guards are available in galvanized or stainless steel wire mesh. The screen can be special ordered with a design to withstand a 400 pound load to comply with Cal-OSHA standards.
See Documents tab below for Measurement Form and other important documents.
|
Part # |
Width Range |
Length Range |
Material |
|
Domed |
|||
|
SRS2424G |
12"-24" |
12"-23" |
Galvanized |
|
SRS2436G |
12"-24" |
24"-35" |
Galvanized |
|
SRS2448G |
24"-35" |
36"-51" |
Galvanized |
|
SRS2460G |
24"-35" |
52"-60" |
Galvanized |
|
SRS2472G |
24"-35" |
61"-80" |
Galvanized |
|
SRS2496G |
24"-35" |
81"-104" |
Galvanized |
|
SRS3636G |
36"-41" |
24"-35" |
Galvanized |
|
SRS3648G |
36"-41" |
36"-51" |
Galvanized |
|
SRS3660G |
36"-41" |
52"-59" |
Galvanized |
|
SRS3672G |
36"-41" |
60"-79" |
Galvanized |
|
SRS3696G |
36"-41" |
80"-103" |
Galvanized |
|
SRS4848G |
42"-58" |
47"-52" |
Galvanized |
|
SRS4860G |
42"-58" |
52"-59" |
Galvanized |
|
SRS4872G |
42"-58" |
60"-79" |
Galvanized |
|
SRS4896G |
42"-58" |
80"-103" |
Galvanized |
|
SRS6060G |
58"-70" |
52"-59" |
Galvanized |
|
SRS6072G |
58"-70" |
60"-79" |
Galvanized |
|
SRS6096G |
58"-70" |
80"-103" |
Galvanized |
|
SRS60120G |
58"-70" |
104"-128" |
Galvanized |
|
Please call for custom sizes and stainless steel screens. |
|||
