Skylight Screen - Model SCS

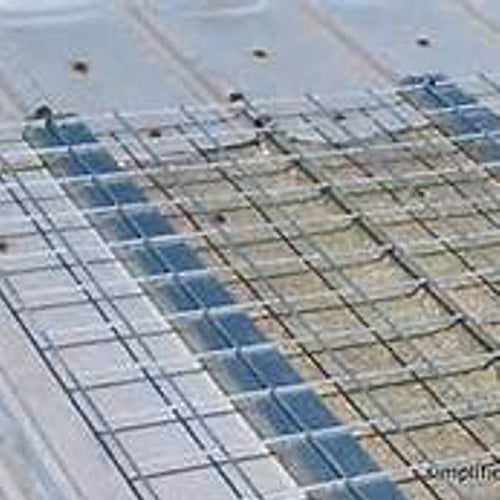

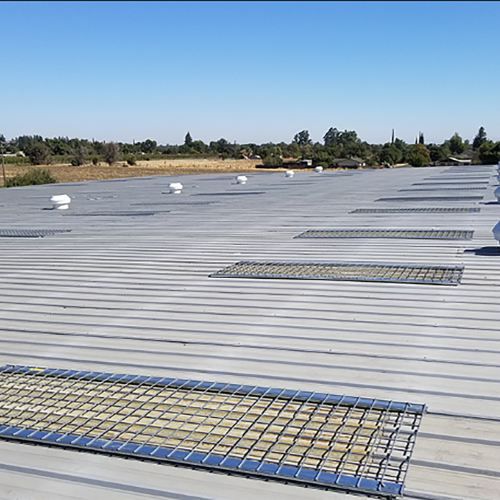

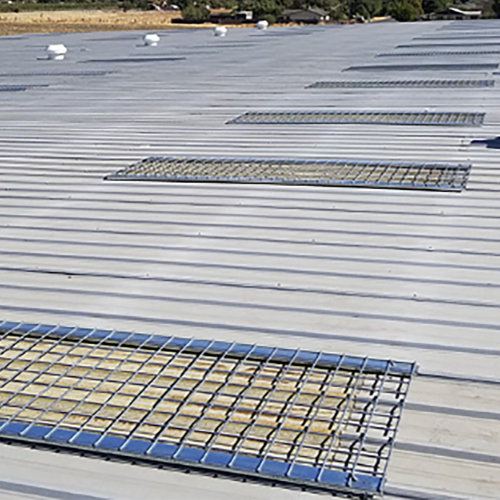

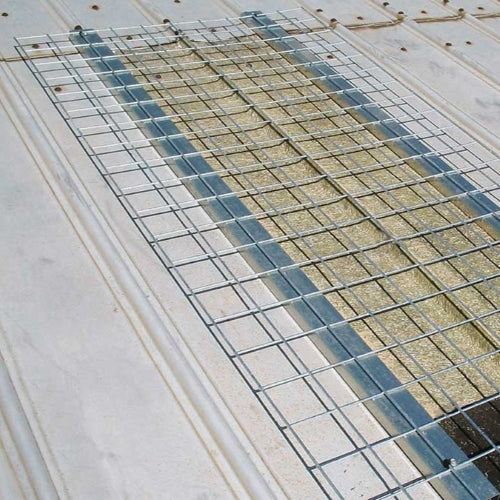

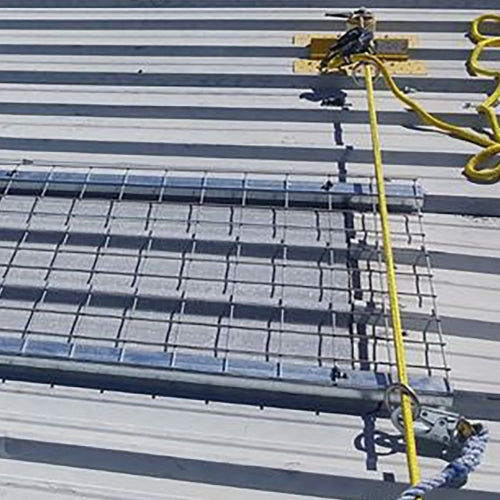

The NextGen Corrugated Skylight Safety-Screen™, Model SCS, provide an easily installed skylight cover in compliance with OSHA Code: 1910.28(b)(3)(i). The skylight fall protection system guards against injuries or death from accidental falls through the lens of the skylight.

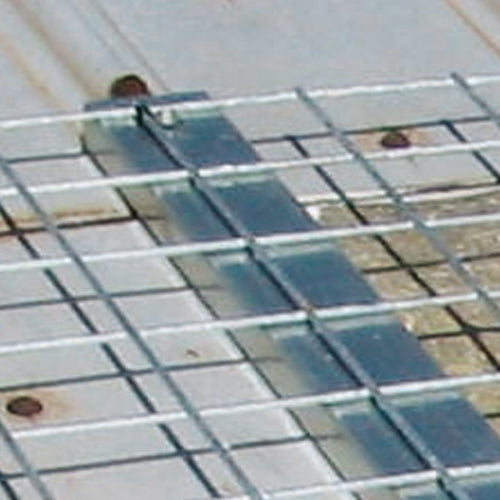

The heavy metal 4 x 4 grid rests on two U-shaped stainless steel channels installed on the outside skylight panel ribs. The screens and channels are attached through the roof to the steel or wood building purlins using metal clips included in the kit.

Model SCS skylight guards are available in galvanized or stainless steel wire mesh. This screen can be special ordered with a design to withstand a 400 pound load to comply with Cal-OSHA standards.

See Documents tab below for Measurement Form and other important documents.
