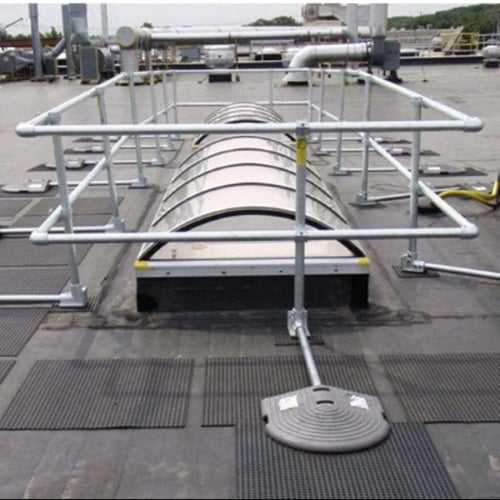

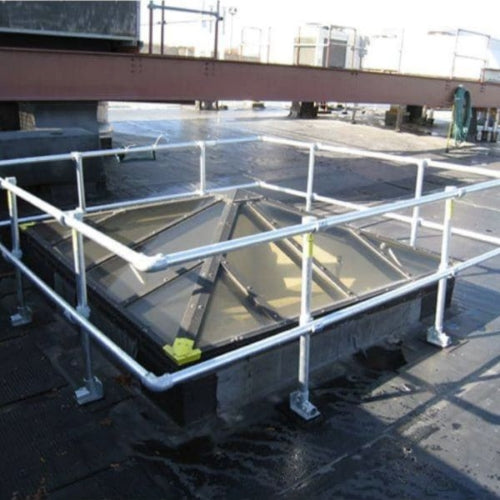

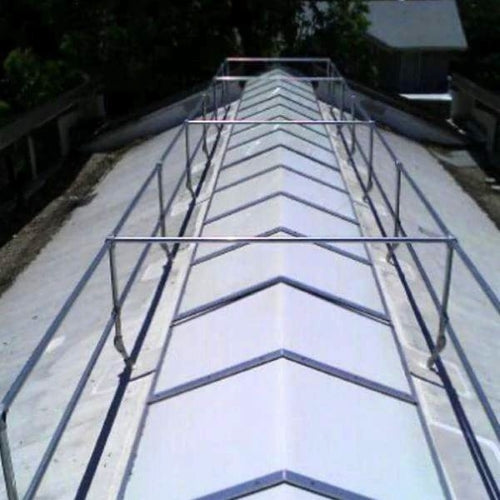

Kee Guard® Skylight Railing
Description
Safety Rail Source® partners with Kee Safety® to offer Kee Guard® free-standing skylight railing. The railing meets OSHA Standards 29 CFR 1910.23 and 29 CFR 1910.66 (a)(4) by creating a barrier around skylights, roof-lights and dome-lights. Kee Guard® Railing is non-penetrating and consists of Kee base fittings along with posts with continuous rail. The rails extend 42” above the walking surface and withstand a force of 200 lbs. applied to the top rail. Custom Colors are available.
This modular system allows contractors and maintenance crews to access rooftops for repair and maintenance work safely and easily without the risk of falling thru the hazard.
Share:
Copied!
Features:
OSHA compliant design
Free-standing
Recycled PVC bases (some designs)
Pre-cut pipe for fast assembly
Materials:
Tubing is 2” OD, galvanized and pre-cut
Fittings - Kee Klamp® galvanized malleable iron castings
Fittings meet ASTM A47-77-32510
Bases are galvanized, malleable, iron fittings
Installation:
Tie-off according to OSHA Standards
Remove stones from roof at base position
Place Kee Klamp® bases against skylight curb
Insert posts into bases and install top and mid rails
Tighten set screws with hex key
