Hippo Anchor™
Description

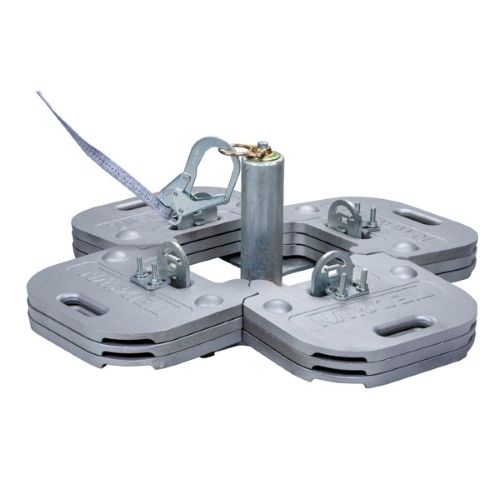

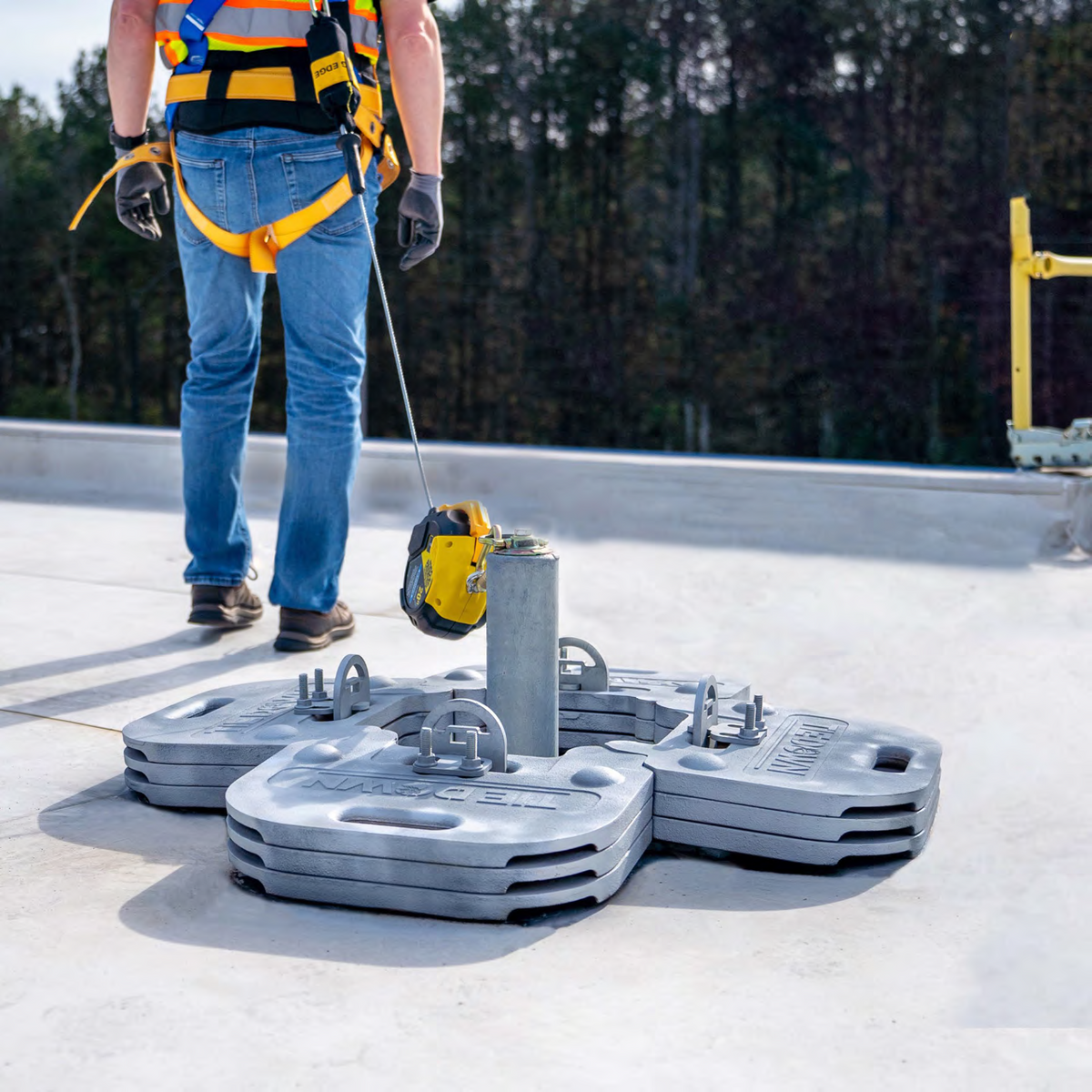

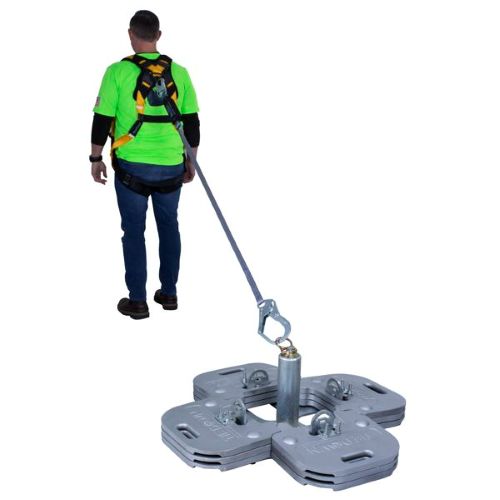

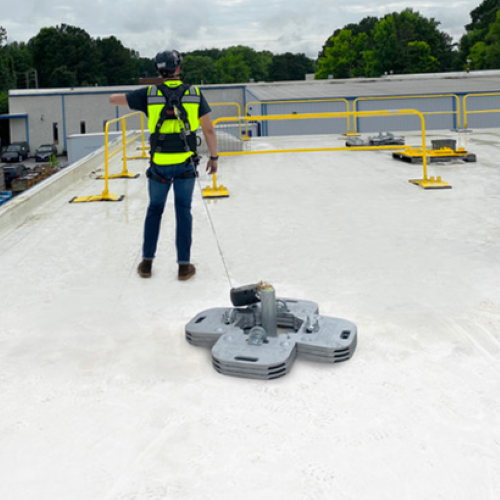

The Hippo Anchor™, also called a Ratel Anchor, is a free-standing, movable non-penetrating, deadweight anchor system for use on roofs with up to 5° pitch. There are two systems available. The 12 plate system weighs 635 lbs. and the 16 plate system weighs 825 lbs. It is designed for temporary or permanent use and is easy to assemble and transport. This anchor is reusable and complies with OSHA standards for one worker in fall arrest or two in fall restraint. It is designed for compatibility with harnesses and lanyards with 900 lbs. maximum arresting force and complies with Military Code - EM 385 -1, and ASSE z359.1, OSHA 1926.502. This system must be installed at least 10' from an edge. This anchor is galvanized for corrosion resistant assuring a long life.
Features:
Comes in a 12 plate or 16 plate system
Compatible with roofs with up to a 5° pitch
Designed for compatibility with lanyards with 900 lbs. maximum arresting force
Military Code - EM 385 -1, and ASSE z359.1, OSHA 1926.502 compliant
Galvanized coating and corrosion resistant
Fall restraint up to 2 workers when 20” away from the edge
Raised central anchor reduces the travel distance in the case of fall arrest
Materials:
Post with base plate and loop
Plate weights
Clips
Installation:
Place post system in desired location (Note: Must be installed at least 10’ from an edge)
Place plates over prong and bolts

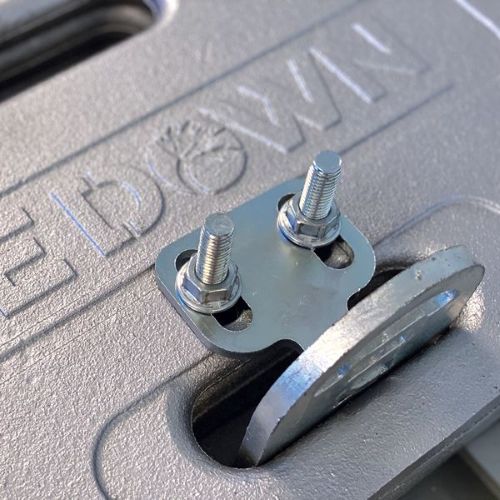

Fit clip over screws and fix it into prongs
Tighten bolts and washers to screws
