Type P57 - Modified M50-8 With Slot
Description

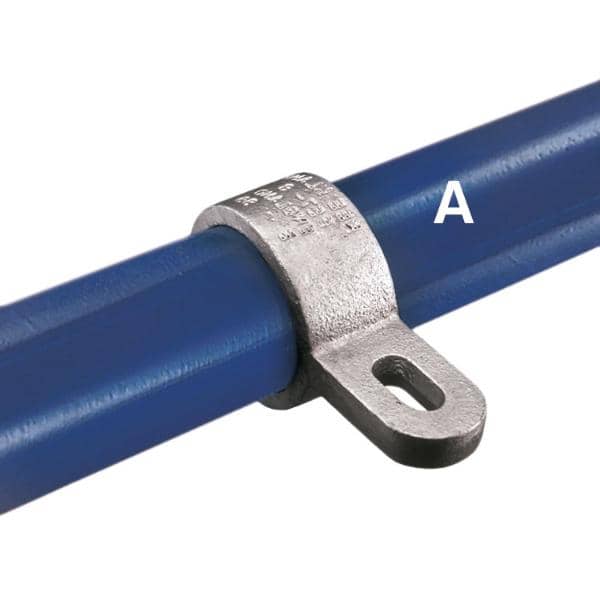

Developed for the secure fitting of various types of panels and flooring to pipe structures i.e. plywood, plastic sheeting, wood planking, etc. This fitting has an offset flange to allow the flush attachment of panels to pipe.
Share:
Copied!

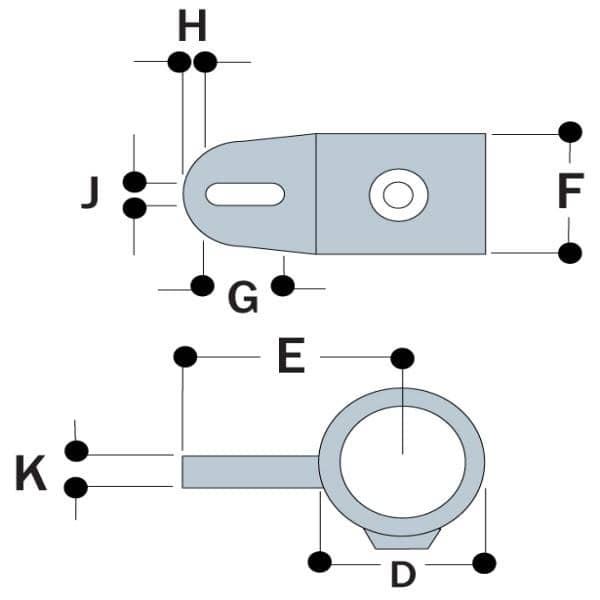

| Pipe OD | Meas. (in.) | ||||||||
| Type | A | D | E | F | G | H | J | K | lbs. |
| P57-7 | 1.66" | 2.15 | 4.01 | 1.26 | 1 | 0.13 | 0.5 | 0.43 | 0.82 |
| P57-8 | 1.90" | 2.4 | 3.19 | 1.85 | 1.26 | 0.31 | 0.39 | 0.43 | 1.54 |
