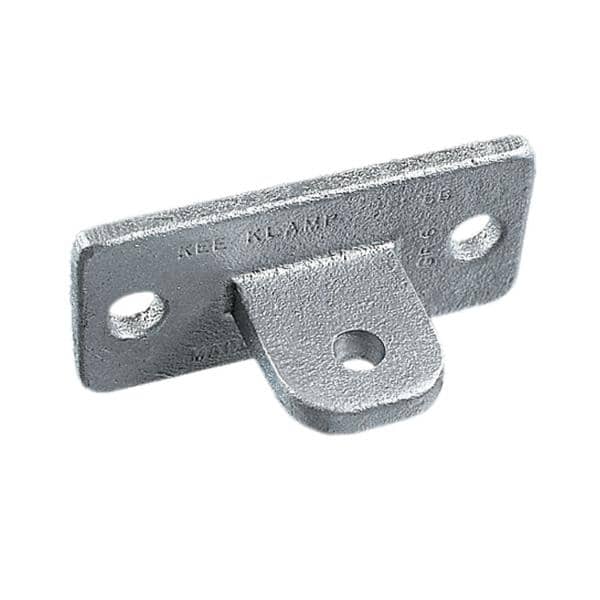

Type M58 - Base Plate
Description
This may be considered for various wall and brace fixings, usually combined with Type F50 to give and adjustable angle fitting Type C58. Ø indicates diameter of base plate fixing holes. The diameter of the attachment bolt hole is 0.39 inch (10 mm).
Share:
Copied!
| Meas. (in.) | |||||||||
| Type | D | E | F | G | H | J | K | Ø | lbs. |
| M58 | 1.38 | 3.31 | 4.41 | 2.01 | 0.24 | 1.77 | 0.35 | 0.47 | 0.82 |
