Type MH50 - Male Single Horizontal Swivel Socket Member

(877) 723-3766

MADE IN USA USA Flag

Galvanized Fitting Type MH50 - Male Single Horizontal Swivel Socket Member

Type MH50 - Male Single Horizontal Swivel Socket Member

Type MH50 - Male Single Horizontal Swivel Socket Member

Request Quote

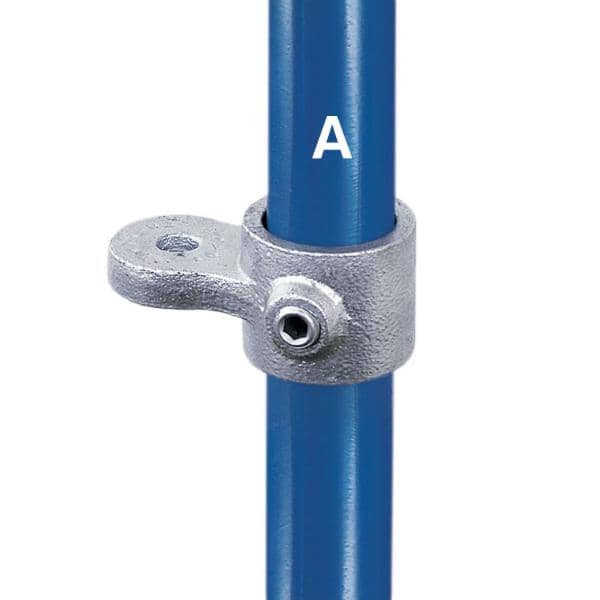

One half of a combination fitting. This can also be used for attaching flat panels to tubular structures. Ø indicates diameter of bolt hole.

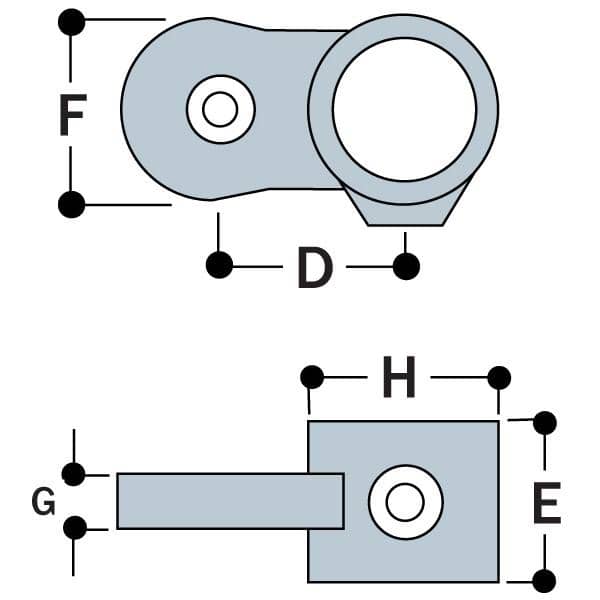

	Pipe OD	Meas. (in.)					Bolt Hole
Type	A	D	E	F	G	H	Ø	lbs.
MH50-6	1.32"	1.69	1.50	1.50	0.43	1.81	0.39	0.66

	Nominal Pipe Size			inches					Bolt Hole	lbs
Type	A	B	C	D	E	F	G	H	Ø
MH50-6	1			1.69	1.50	1.50	0.43	1.81	0.39	0.66
