Type BC53 - Swivel Elbow
Description

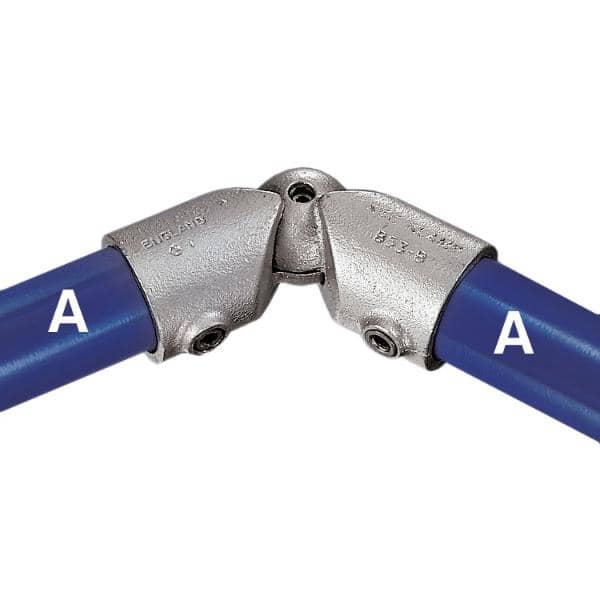

The BC53-8 fitting has been designed as a variable angle inline connection, adjustable through 202°. Warning! An entire structure should not be constructed from BC53-8 or any other swivel fitting, as these would not provide sufficient stability or rigidity in the structure due to the free rotation of the fitting.
Share:
Copied!

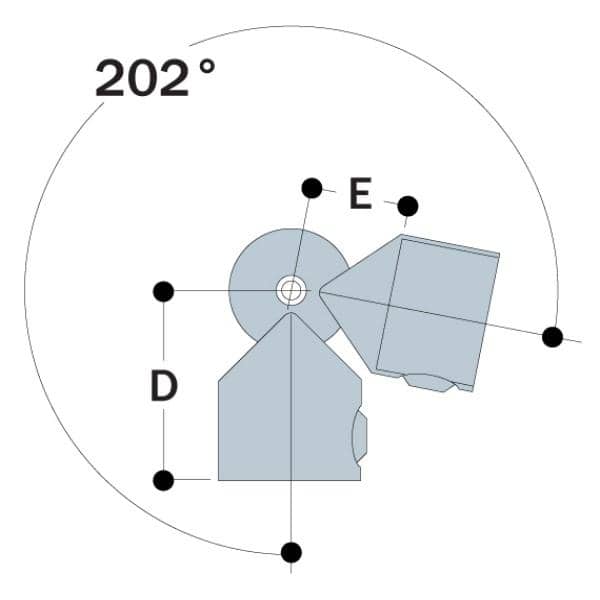

| Pipe OD | Meas. (in.) | |||
| Type | A | D | E | lbs. |
| BC53-8 | 1 1/2" | 3.27 | 1.77 | 2.48 |
