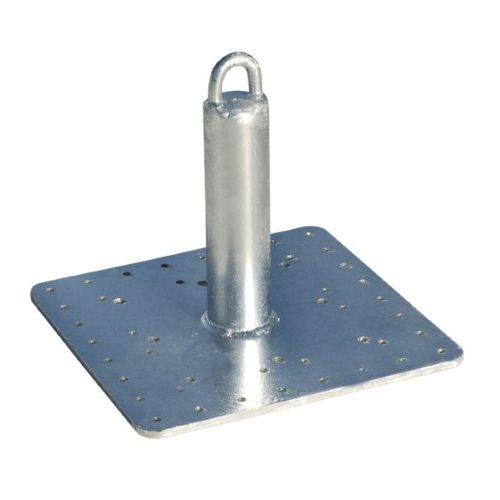

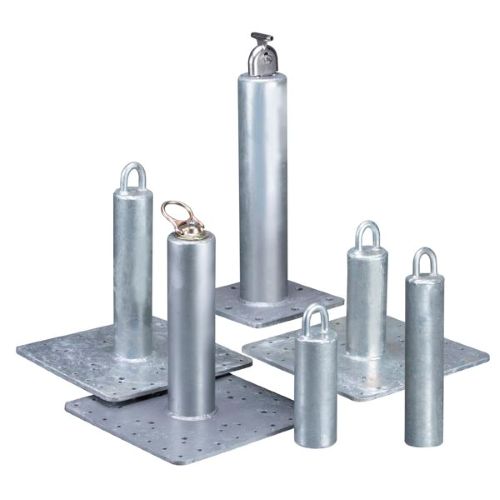

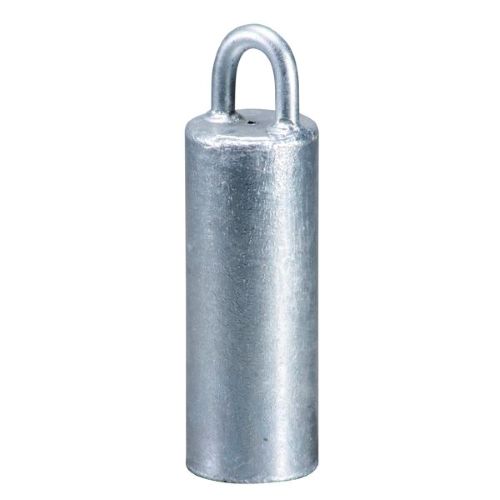

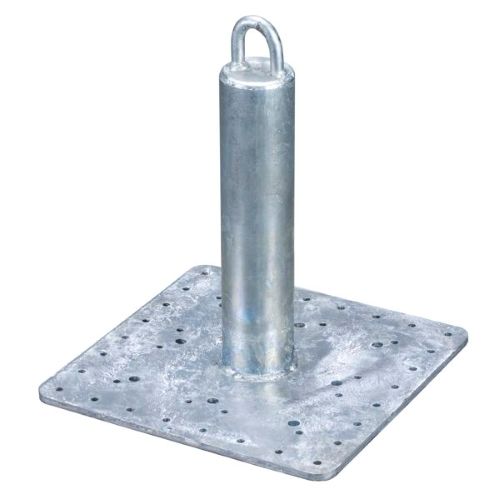

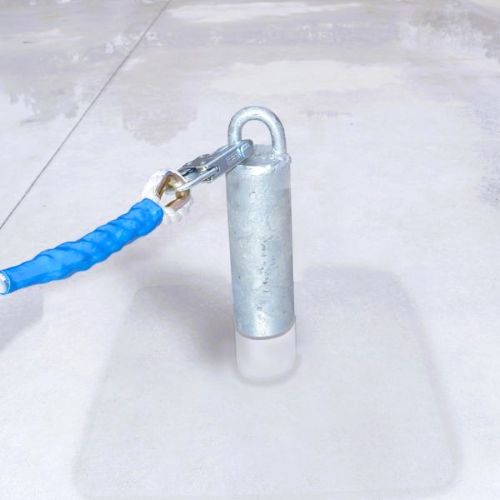

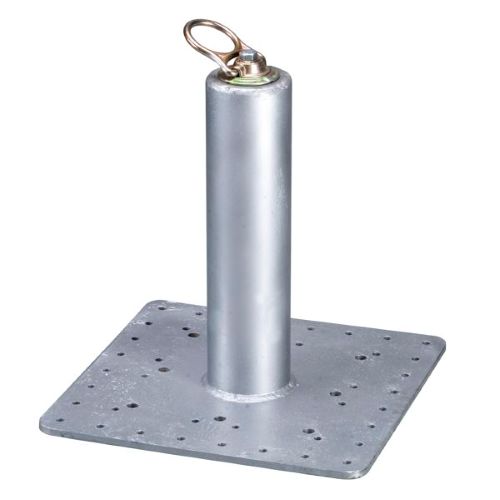

The Post-Type Roof Anchor™ is designed for a single user in fall arrest or two users in fall restraint on a low slope roof application (4/12 pitch or less). Standard post height is 12” or 18”. We offer posts welded to mounting plates and posts that are field welded to the surface or beam by the installing contractor. The tie off point at the top of the post can be either a welded ring or a swivel connection.
Up to two workers may tie off to a horizontal lifeline that is connected to our CRA’s (Commercial Roof Anchors). A horizontal lifeline may be used with our CRA's when designed by a qualified person.
NextGen Post Type Roof Anchors Meet or Exceed: OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, ANSI A10.32-2012
See tab below for more information.
Post-Type Roof Anchor Cut Sheet
