Type 63 - Angle Base Flange
Description

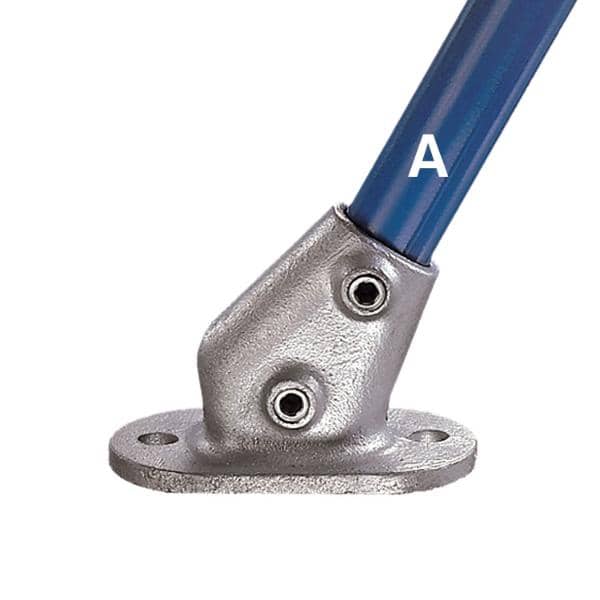

This fitting is similar to Type 62, but is used to set up the upright at an angle between 45° and 60°. This fitting should only be subjected to light loads due to its size and the base fixing holes, which cannot be positioned at 90° to the applied load for normal staircase and ramp guardrail applications. For greater loads or other pipe sizes, Type 62 flange is used and the upright bent to the required angle.

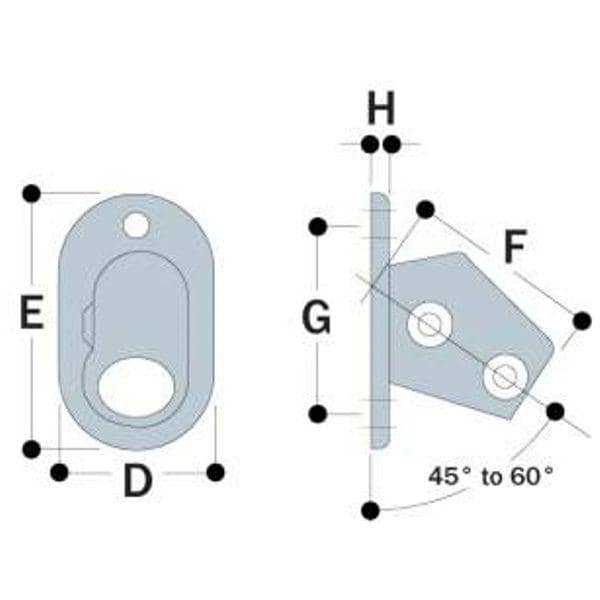

Ø indicates diameter of fixing holes.
Note: Size 6 is available by Special Order Only. Sizes 7 and 8 are stocked items.
Share:
Copied!
| Pipe OD | Meas. (in.) | |||||||
| Type | A | D | E | F | G | H | Ø | lbs. |
| 63-6 | 1.32" | 3.00 | 5.00 | 3.62 | 3.74 | 0.31 | 0.55 | 2.16 |
| 63-7 | 1.66" | 2.99 | 5.43 | 3.74 | 4.17 | 0.39 | 0.55 | 2.54 |
| 63-8 | 1.90" | 3.50 | 6.10 | 3.94 | 5.43 | 0.39 | 0.55 | 3.31 |
