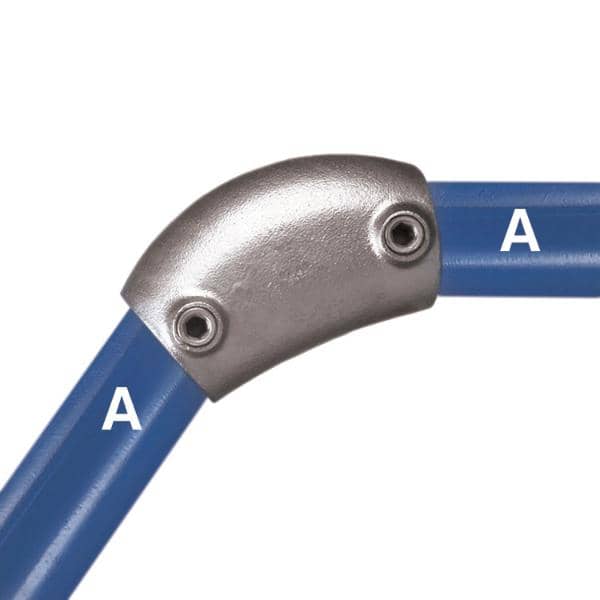

Type 55 - Obtuse Angle Elbow
Description
The Type 55 is an ideal fitting to use as an alternative to bending, or when a junction between a sloping tube and an end post is required.
Share:
Copied!

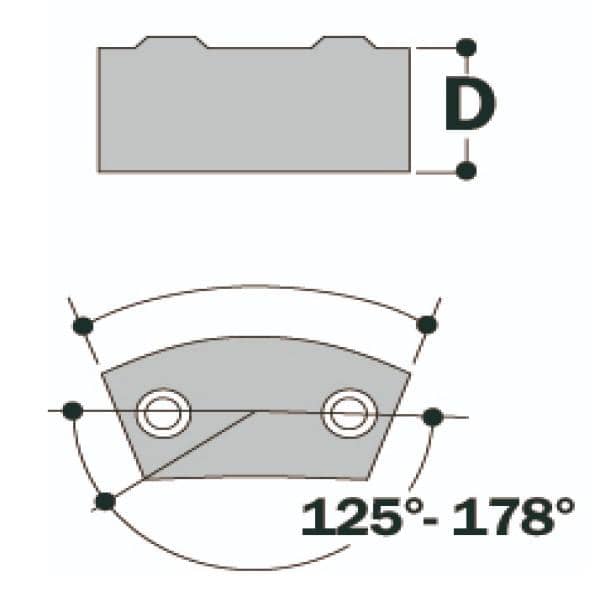

| Pipe OD | Meas. (in.) | |||
| Type | A | D | E | lbs. |
| 55-6 | 1.32" | 1.81 | 4.57 | 1.12 |
| 55-7 | 1.66" | 2.17 | 6.06 | 1.80 |
| 55-8 | 1.90" | 2.36 | 6.02 | 1.90 |
