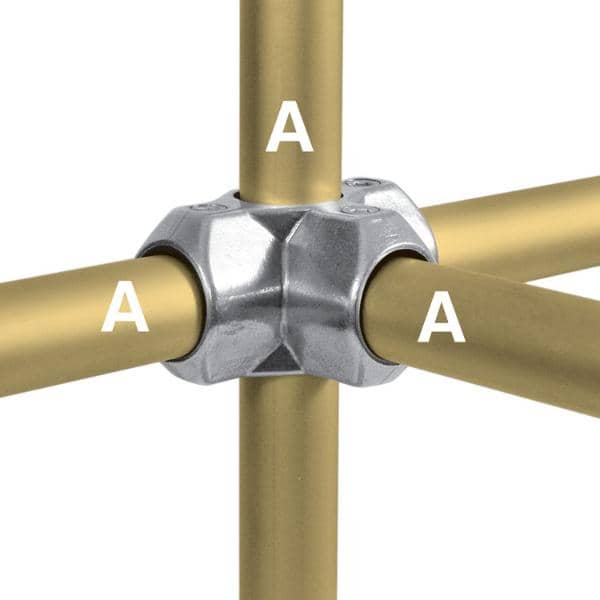

Type L35 - Three Socket Cross
Description
Most frequently used to tie uprights with horizontal pipe in three directions, all at 90° to the upright. The upright passes through the fitting.
Share:
Copied!

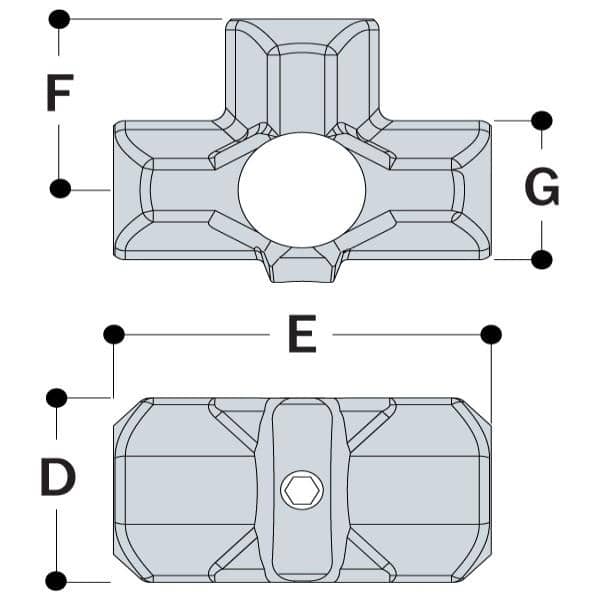

| Pipe OD | Meas. (in.) | |||||
| Type | A | D | E | F | G | lbs. |
| L35-6 | 1.32" | 2.20 | 4.09 | 2.05 | 1.67 | 0.68 |
