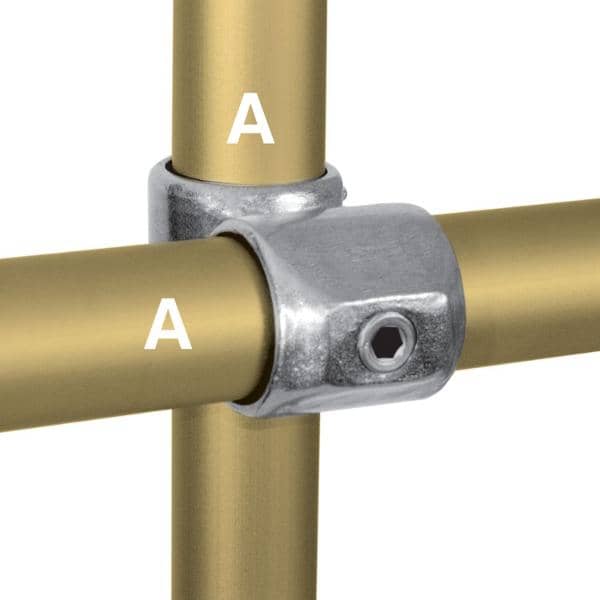

Designed to give a 90° offset crossover joint. Frequently used on safety railing, where, to reduce cost by minimizing the pipe cuts, a continuous horizontal rail is used. Pipe cannot be joined within this Kee Klamp® fitting. It may be also used to give intermediate levels on racks.

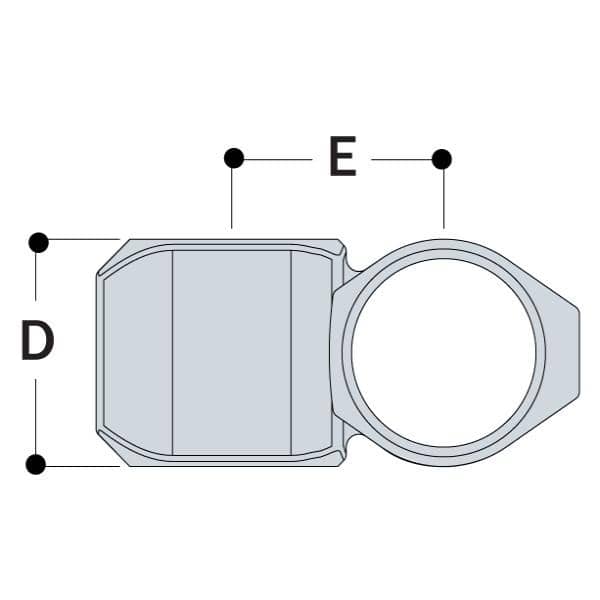

Pipe Ref.
Dimension (in)
Weight
Type
A
D
E
F
G
H
J
L45-6
6
1.73
1.57
0.26
L45-7
7
2.13
1.97
0.68
L45-8
