Aluminum Fitting Type L30 - 30 to 45 Adjustable Cross

Type L30 - 30° to 45° Adjustable Cross

Request Quote

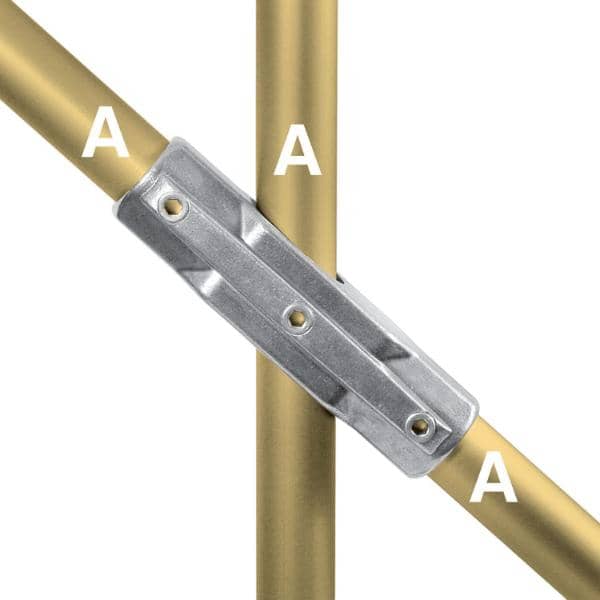

This adjustable fitting can be used for railing on staircases between the mid-rail and intermediate upright which is required to remain vertical. It can be used at any selected angle between 30° and 45°.

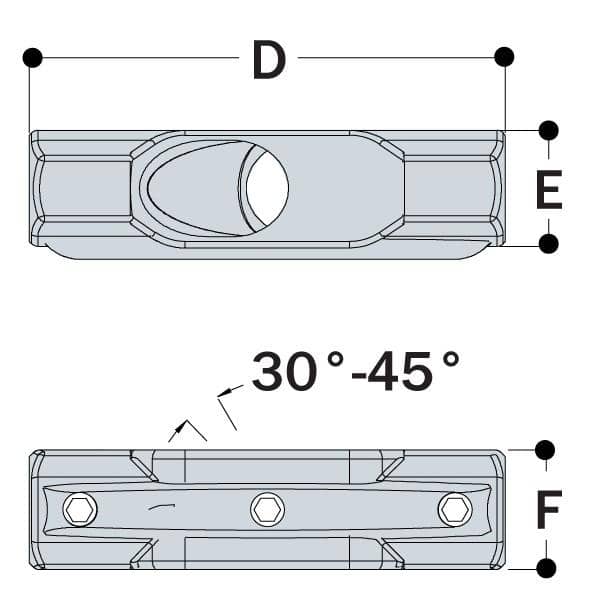

	Pipe OD	Meas. (in.)
Type	A	D	E	F	lbs.
L30-7	1.66"	8.46	2.07	2.13	1.15
L30-8	1.90"	9.65	2.34	2.36	1.52

	Pipe Ref.			Dimension (in)							Weight
Type	A	B	C	D	E	F	G	H	J	ø	(lb)
L30-7	7			8.46	2.07	2.13					1.15
L30-8	8			9.65	2.34	2.36					1.52
