Type L160 - Smooth Handrail Fitting
Description

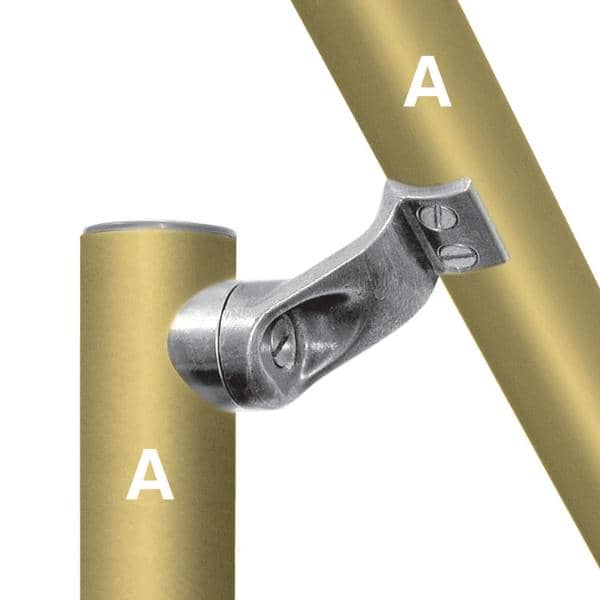

Designed to provide attachment for a smooth handrail. and satisfies ADA requirements. The fitting swivels allowing the handrail to be placed at any angle. The fitting is supplied as a kit including fasteners. Ref A refers to the diameter of the post.
Share:
Copied!

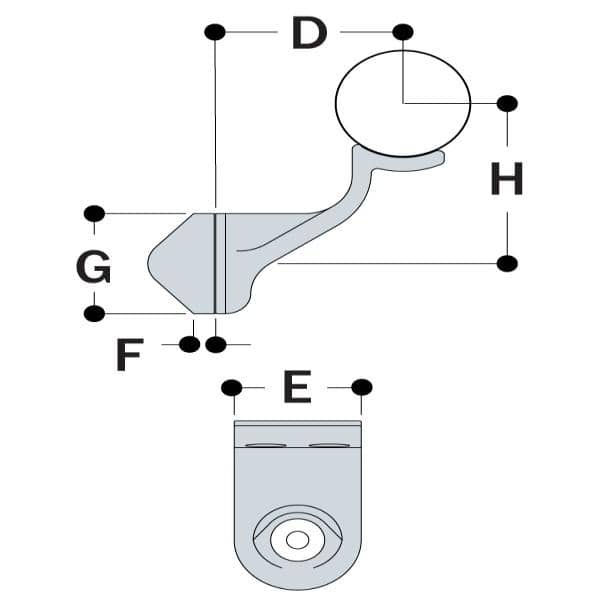

| Pipe OD | Meas. (in.) | ||||||
| Type | A | D | E | F | G | H | lbs. |
| L160-7 | 1.66" | 2.32 | 1.57 | 0.39 | 1.57 | 2.52 | 0.24 |
| L160-8 | 1.90" | 2.32 | 1.57 | 0.31 | 1.57 | 2.64 | 0.22 |
