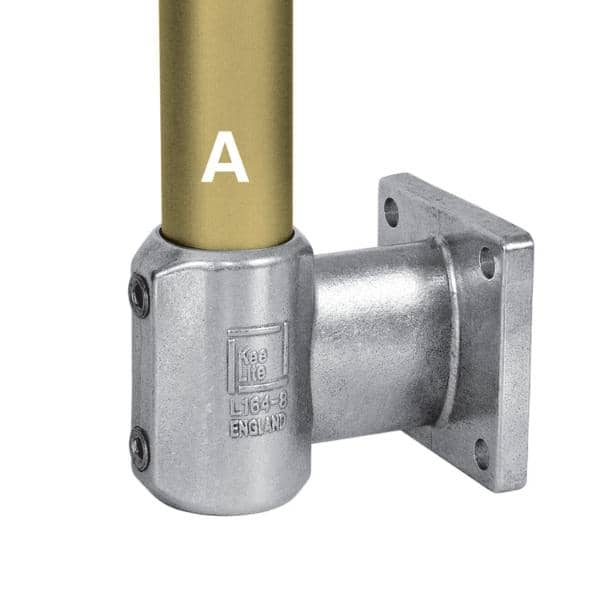

Type L164 - Offset Wall Flange
Description
This fitting is designed for side palm fixing of uprights to steel channels, walls, parapets, steps and ramps. The upright cannot drop through the socket. Ø indicates diameter of fixing holes.
Share:
Copied!

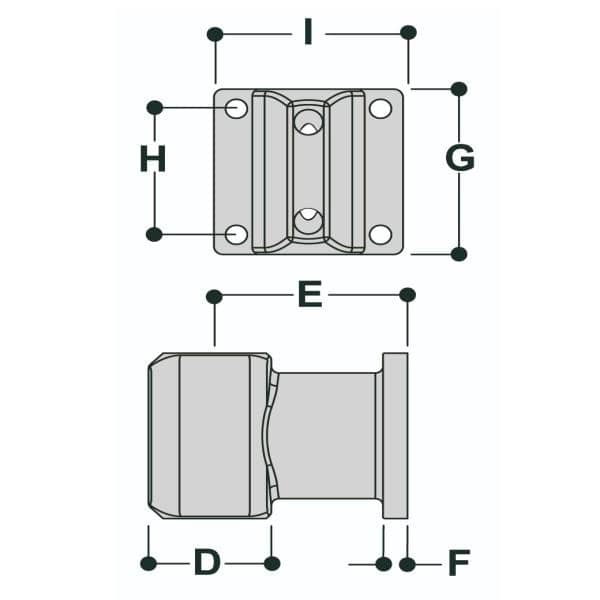

| Pipe OD | Meas. (in.) | |||||||
| Type | A | D | E | F | G | H | Ø | lbs. |
| L164-8 | 1.90" | 2.56 | 4.00 | 0.50 | 4.00 | 3.00 | 0.45 | 1.87 |
