Type L152 - 4 Hole Square Flange
Description

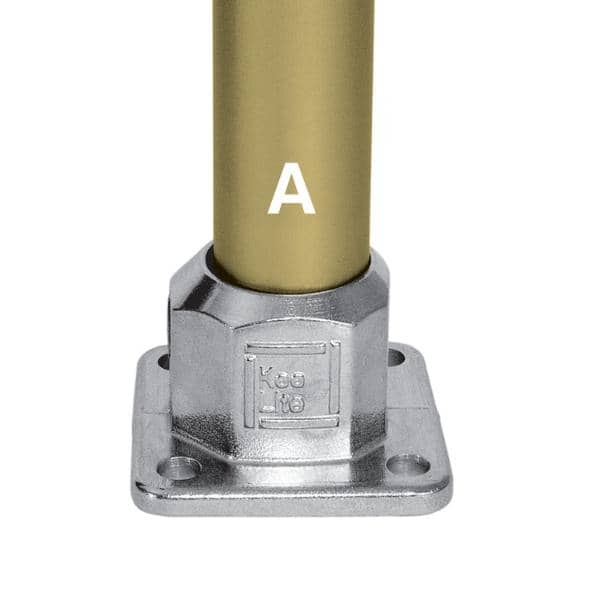

A four point fixing base or wall flange. Ø indicates diameter of fixing holes.
Share:
Copied!

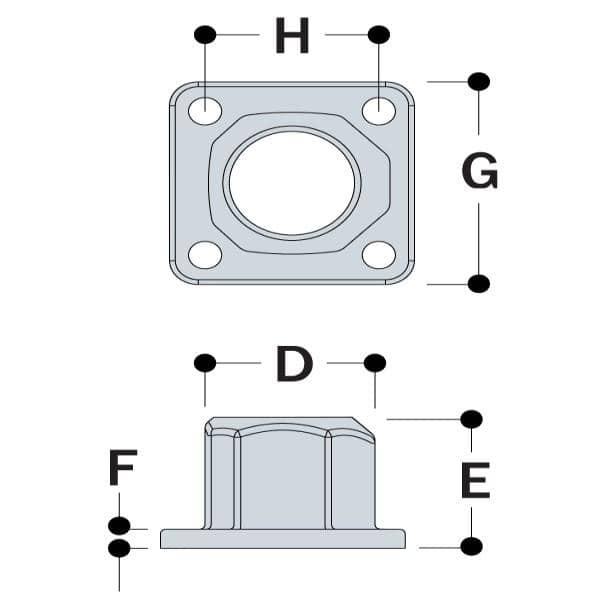

| Pipe OD | Meas. (in.) | |||||||
| Type | A | D | E | F | G | H | Ø | lbs. |
| L152-6 | 1.32" | 1.97 | 1.81 | 0.25 | 2.99 | 2.06 | 0.31 | 0.35 |
| L152-7 | 1.66" | 2.32 | 2.17 | 0.31 | 3.35 | 2.38 | 0.45 | 0.59 |
| L152-8 | 1.90" | 2.56 | 2.56 | 0.31 | 3.62 | 2.63 | 0.45 | 0.68 |
