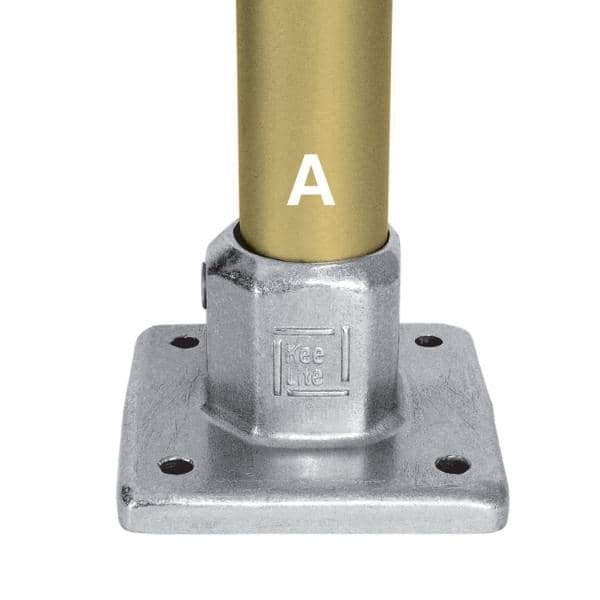

Type L150 - Heavy Duty 4 Hole Square Flange
Description
A heavy duty, four point fixing, base flange. Ideal when a structural fixing is required. Ø indicates diameter of fixing holes.
Share:
Copied!

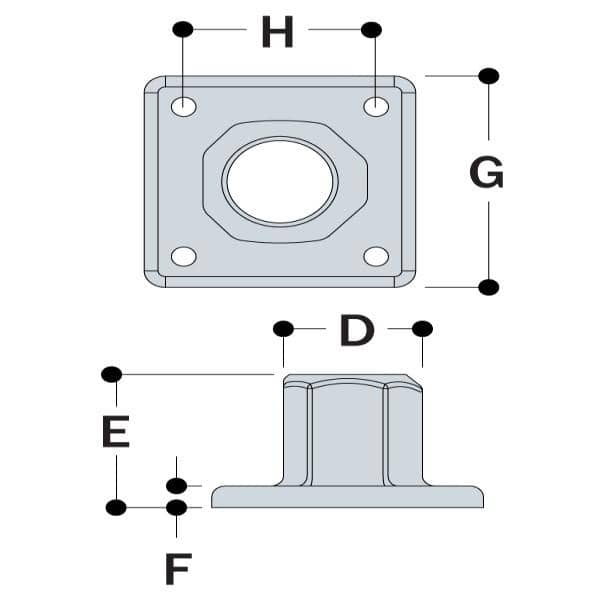

| Pipe OD | Meas. (in.) | |||||||
| Type | A | D | E | F | G | H | Ø | lbs. |
| L150-8 | 1.90" | 2.56 | 3.00 | 0.51 | 5.00 | 3.5.0 | 0.45 | 1.61 |
