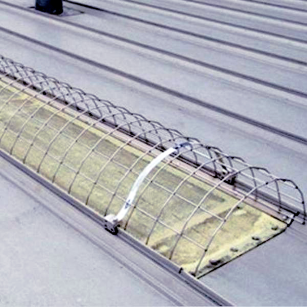

NextGen Model SSS standing seam skylight fall protection screen with semi-circular mesh grid and support ribs mounted on a metal roof.
NextGen Model SSS standing seam skylight fall protection screen supporting a worker's weight to show 400 lb load capacity.
NextGen Model SSS standing seam skylight fall protection guard shown installed across a commercial metal roof.

Skylight Screen - Model SSS

Description

Request Quote
Features:
Cal/OSHA compliant at 400 lbs. force
Non-penetrating standing seam attachment
Lightweight
Made in the USA

Materials:
4" x 4" wire mesh grid
Stainless steel hold-down straps
S-5™ Utility Clamps (stainless steel or aluminum)
Galvanized mesh (standard) or Stainless steel mesh (optional)

Installation:
Attach S-5 type clamps to the roof seam
Place screen on top of clamps
Route stainless steel straps over the screen
Attach screen to S-5 clamp using bolt and clip
Installation time once material is staged is 10 minutes

Model SSS Specifications

FeatureDetails
Skylight Type Standing Seam Metal Roof Skylights
Mounting Mechanism Non-penetrating S-5™ clamp and strap system attached to standing seams
Screen Size 4" x 4" wire mesh grid
Standard Width 24"
Standard Length 120”
Screen Material .187 or .250 diameter 304 stainless steel wire
Hardware Included (2) stainless steel straps, (4) S-5 clamps, washers, and hex head bolts
Required Tools 5/8” crescent wrench, 3/16” Allen wrench, pliers or vise grips, cordless drill with 3/16" Allen wrench bit or 5/8” hex driver bit

Frequently Asked Questions

What standing seam width does the Model SSS fit?

The standard size for the Model SSS is designed to fit a 24-inch standing seam width. However, because standing seam roof dimensions can vary significantly, custom sizes are readily available to ensure a precise, secure fit for your specific roof profile.

Why does the screen material come in two different wire diameters?

The Model SSS utilizes either .187 or heavy-duty .250 diameter 304 stainless steel wire. The thicker .250 diameter wire is required for screens designed to fit skylights measuring more than 25 inches in width. This ensures the larger screen maintains its structural integrity and OSHA-compliant load capacity over a wider span.

Does the Model SSS meet OSHA and Cal-OSHA requirements?

Yes. The NextGen Skylight Safety-Screen™ is designed and tested to comply with OSHA 29 CFR 1910.28(b)(3)(i) and Cal/OSHA 8 CCR §3212. The screen can withstand a 400 lbs. applied load to comply with Cal-OSHA standards.

Does the Model SSS require drilling into the metal roof?

No. The Model SSS uses a specialized non-penetrating installation method. It relies on S-5™ Utility Clamps that securely grip the standing seam of the metal roof, completely eliminating the need for penetrating fasteners and preventing potential leaks.

How long does it take to install the NextGen Model SSS skylight screen, and what is required?

It takes two workers approximately 10 minutes to install one NextGen Model SSS skylight safety screen once tools are staged. Installation is fast and non-penetrative because the design relies on a straightforward clamp and strap system that secures directly to standing seam metal roofs without drilling.
