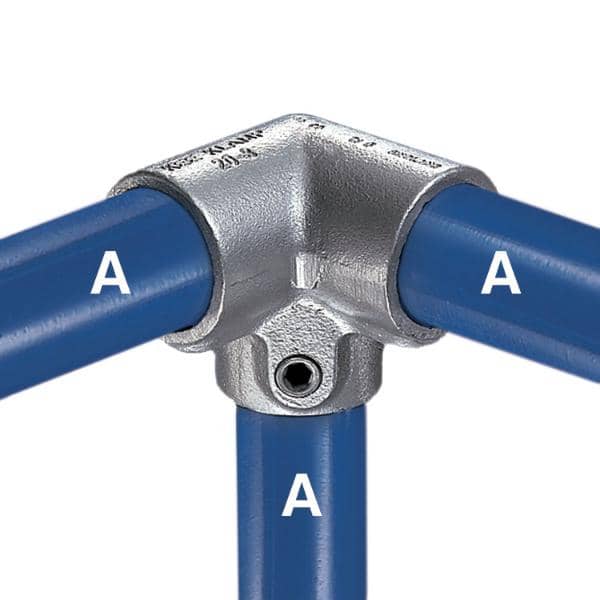

Type 20 - Side Outlet Elbow
Description
A 90 ° corner joint most frequently used for the top rail of guardrail. It can also be considered for the top corner joint of benches, work tables, and other rectangular structures.
Share:
Copied!
| Pipe OD | Meas. (in.) | ||
| Type | A | D | lbs. |
| 20-6 | 1.32" | 1.81 | 1.06 |
| 20-7 | 1.66" | 2.36 | 1.79 |
| 20-8 | 1.90" | 2.68 | 2.49 |
| 20-9 | 2.38" | 3.31 | 4.01 |
