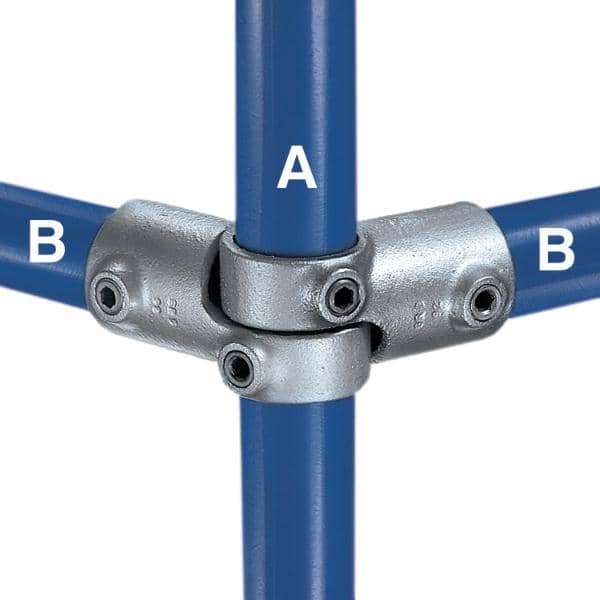

Type 19 - Adjustable Side Outlet Tee
Description

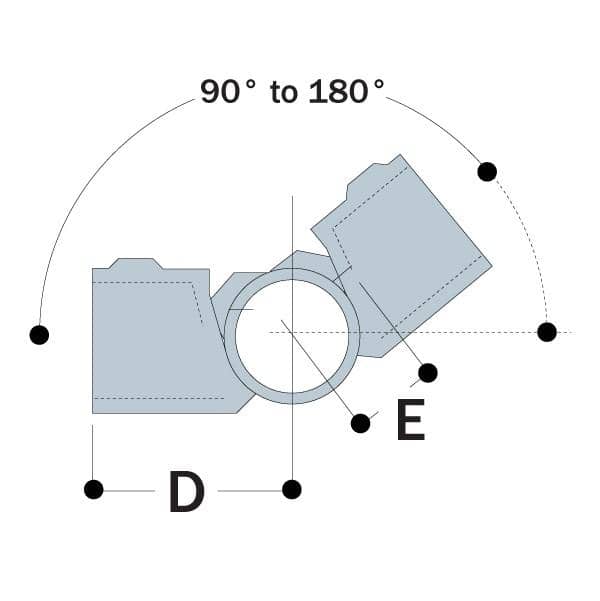

Used in pairs to form variable angle joints between 90° and 180°. When calculating cutting lengths for pipe, dimension 'E' should be subtracted to give true pipe length. Note: Type 19 fittings are normally used in pairs. In the UK, France and Germany, they are sold and priced separately. In the US and Canada, they are sold and priced in pairs. In the case of type 19-8 and 19-85 these fittings can produce an angle range between 60° and 180°.
Share:
Copied!
| Pipe OD | Meas. (in.) | ||||
| Type | A | B | D | E | lbs. |
| 19-6 | 1.32" | 1.32" | 2.28 | 1.30 | 0.64 |
| 19-7 | 1.66" | 1.66" | 2.87 | 1.57 | 0.90 |
| 19-8 | 1.90" | 1.09" | 3.54 | 2.17 | 1.17 |
| 19-9 | 2.38" | 2.38" | 4.33 | 1.93 | 2.18 |
