Type 145 - Crossover Coupling

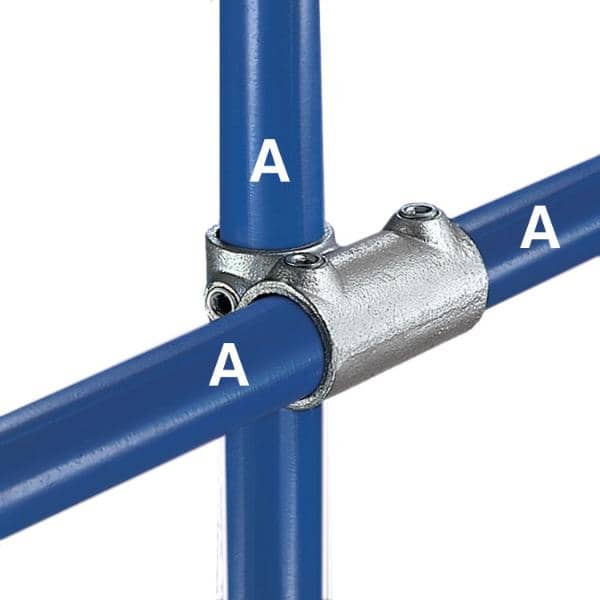

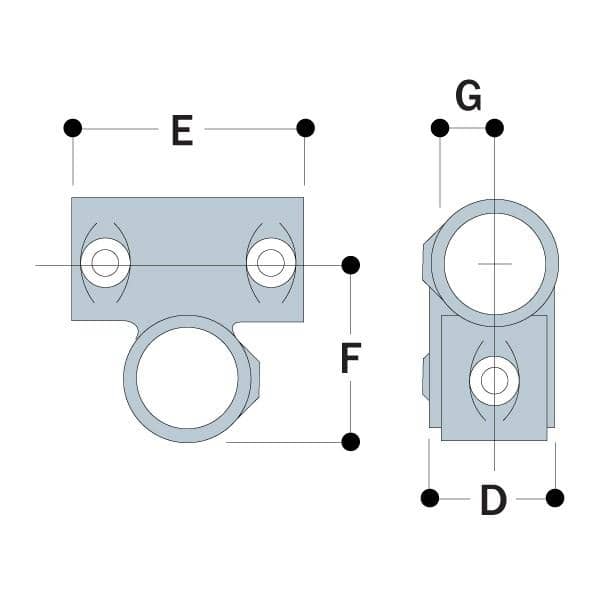

This fitting is designed to give a 90° offset crossover. As there are two socket set screws in the sleeve, this Kee Klamp^® fitting can be used where a join is required in the horizontal pipe. For economy, it is possible to use a Type 45 in place of the 145, using the 145 only where a join in the pipe occurs. When calculating the cutting lengths for pipe, dimension 'G' should be added to give the pipe length for the upright. Note: To obtain the true height of the upright the allowance for the base fittings must be included.
